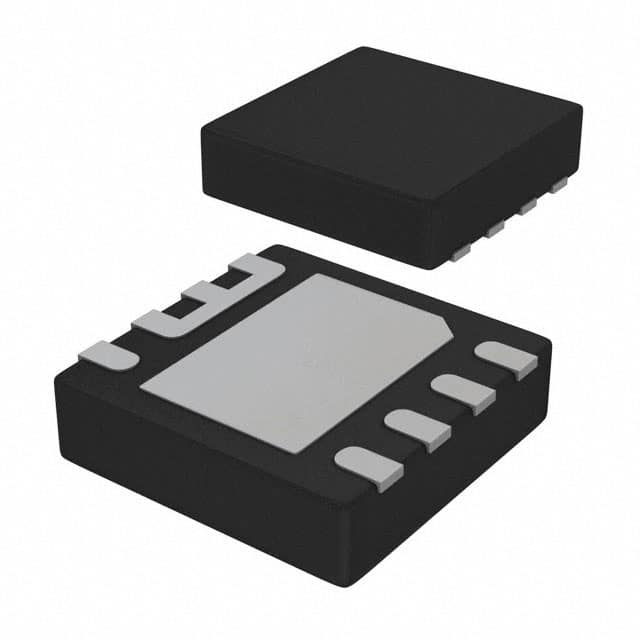

TPS22969DNYR The Texas Instruments TPS22969DNYR is a single-channel N-channel load switch designed for power management applications. It operates from 0.8V to 5.5V and can handle up to 6A.
Mfr Part #:

TPS22969DNYR

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TPS22969DNYR is a single-channel N-channel load switch designed for power management applications. It operates from 0.8V to 5.5V and can handle up to 6A.
✓ Total Stock: 36,453 pcs
$ Price Range: $0.64

TPS22969DNYR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
36,160 pcs
On Request
36160 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
213 pcs
On Request
213 pcs On Request 1 On Request On Request 17+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
80 pcs
On Request
80 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPS22969DNYR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Features
Input Type
Interface
Mounting Type
Number of Channels
Number of Outputs
Operating Temperature
Operating Temperature Range
Operating Voltage
Output Configuration
Output Type
Ratio
Rds On (Typ)
SVHC Present
Supplier Device Package
Switch Type
Voltage
View Similar Products (0)

TPS22969DNYR Description

Short technical summary and product information.

The Texas Instruments TPS22969DNYR is a versatile single-channel load switch designed for efficient power control. It supports an input voltage range from 0.8V to 5.5V, making it suitable for a wide array of applications. With a maximum continuous current rating of 6A and a low on-resistance of 4.4mΩ typical, this device minimizes power loss and heat generation.



Key features include inrush current control and quick output discharge (QOD), which enhance system reliability and protection. The device operates with low quiescent and shutdown currents, contributing to power efficiency. It is controlled via a simple On/Off interface and offers a fixed slew rate for controlled power-up sequences.



The TPS22969DNYR is housed in an 8-WSON package with an exposed pad, measuring 3mm x 3mm, designed for surface mounting. This package type facilitates effective thermal management. The operating temperature range is from -40°C to 125°C (TJ), ensuring reliable performance in demanding environments.

TPS22969DNYR Quick Information

Product Type: Load Switch
Canonical Name: TPS22969 Load Switch
Subcategory: Power Distribution Switches

TPS22969DNYR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPS22969DNYR Estimated Pricing

Qty Low High
1+ $0.64 $0.64

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPS22969DNYR Features

  • Supports 0.8V to 5.5V input voltage.
  • Handles up to 6A maximum continuous current.
  • Low 4.4mΩ typical on-resistance.
  • Features inrush current control.
  • Includes quick output discharge (QOD).

TPS22969DNYR Applications

  • Ideal for power sequencing.
  • Suitable for battery-powered devices.
  • Used in portable electronics.
  • Applicable for system power rail control.

TPS22969DNYR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range of TPS22969DNYR?

0.8 V to 5.5 V.

What is the maximum output current?

6 A.

What is the typical on-resistance?

4.4 mΩ.

What is the quiescent current?

20.4 µA.

What is the operating temperature range?

-40°C to 105°C.

What is the package type?

8-WSON (3x3 mm) and 8-WDFN with exposed pad.
