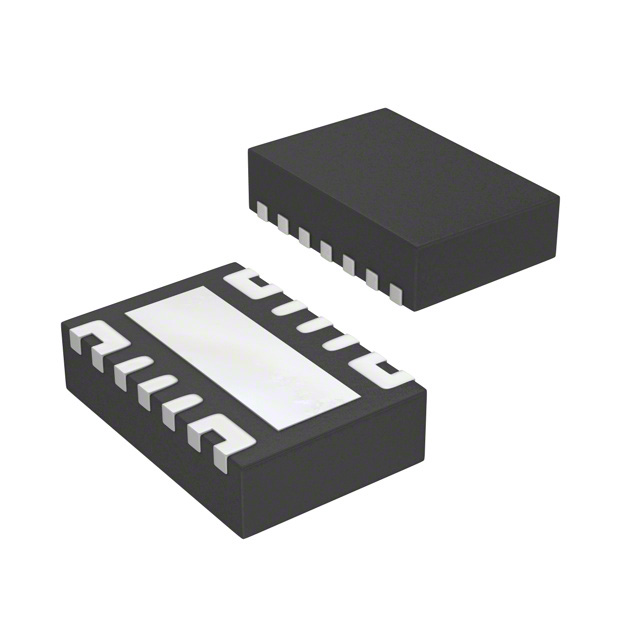

The TPS22966DPUT from Texas Instruments is a compact, dual-channel load switch featuring low on-resistance and controlled turn-on characteristics. It supports an input voltage range from 0.8V to 5.5V, making it versatile for various power supply rails.
Each channel can handle a maximum continuous current of 6A, with a typical on-resistance of 16 mΩ at 5V input. The device includes features like adjustable rise time and optional quick output discharge (QOD), providing design flexibility. Its low quiescent current of 80 µA (both channels) is beneficial for power-sensitive applications.
The TPS22966DPUT is housed in a 14-pin WSON package with a thermal pad, suitable for surface mounting. The low control input threshold allows compatibility with 1.2V, 1.8V, 2.5V, and 3.3V logic levels. This load switch is designed for applications requiring efficient power switching and protection.
Key electrical specifications include a wide input voltage range, high current handling capability, and low on-resistance. The device's interface is a simple On/Off control, and it offers both high-side and low-side output configurations. The operating temperature range is -40°C to 105°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.60 | $0.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 0.8 V to 5.5 V.
The maximum continuous switch current per channel is 6 A.
The typical on-resistance is 16 mΩ.
The operating temperature range is -40°C to 105°C.
It is supplied in a 14-WSON (3x2) package.
Yes, it is RoHS3 Compliant.
The MSL is Level-1-Unlimited.
