Mfr Part #:

TPS22960

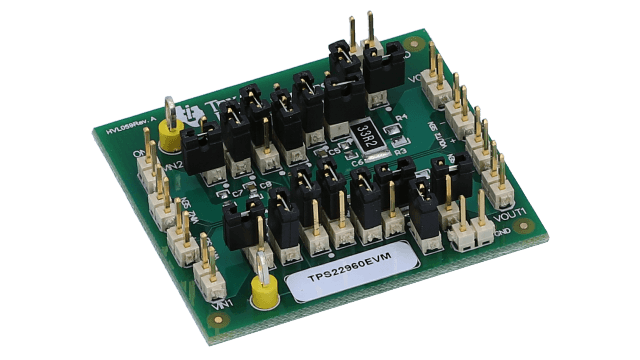

The Texas Instruments TPS22960 is a dual-channel load switch designed for low-voltage applications. It features a wide input voltage range and controlled turn-on characteristics.

✓ Total Stock: 157,217 pcs

$ Price Range: $0.32

TPS22960 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Romaks Technologies ✓ Non-Authorised Inventory information	157,217 pcs On Request	157217 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TPS22960 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Texas Instruments
Input Voltage	1.62 V to 5.5 V
Mounting Type	Surface Mount
Number of Pins	8-Pin
Operating Temperature	-40°C to 85°C
Quiescent Current	0.35 µA

View Similar Products (0)

TPS22960 Description

Short technical summary and product information.

The TPS22960 from Texas Instruments is a compact, dual-channel load switch with controlled turn-on functionality. It operates over an input voltage range of 1.62V to 5.5V, making it suitable for various portable and consumer electronics.

Key electrical specifications include a maximum continuous switch current of 500mA and low ON-state resistance, which varies with input voltage, reaching as low as 342mΩ at 5.5V. The device also offers low quiescent and shutdown currents, contributing to power efficiency. Controlled output rise times of 75µs or 660µs are available to manage inrush current, and an integrated quick output discharge transistor aids in safely turning off loads.

Available in both 8-pin SOT (3mm x 3mm) and 8-pin UQFN (1.5mm x 1.5mm) packages, the TPS22960 is designed for space-constrained applications. It is characterized for operation over a free-air temperature range of -40°C to 85°C.

Applications for the TPS22960 include GPS devices, cell phones, PDAs, MP3 players, and digital cameras, where efficient power management and controlled power sequencing are critical.

TPS22960 Quick Information

Product Type: Load Switch

Canonical Name: Texas Instruments TPS22960 Dual-Channel Load Switch

Subcategory: Power Distribution Switches, Load Drivers

TPS22960 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TPS22960 Estimated Pricing

Qty	Low	High
1+	$0.32	$0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPS22960 Features

Integrated dual-channel load switch.
Wide input voltage range: 1.62V to 5.5V.
Low ON-state resistance (down to 342mΩ).
Controlled output rise time for inrush current.
Compact 8-pin SOT and UQFN packages.

TPS22960 Applications

Suitable for GPS devices.
Used in cell phones and PDAs.
Ideal for MP3 players.
Applicable to digital cameras.

TPS22960 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range of the TPS22960?

The input voltage range is 1.62 V to 5.5 V.

What packages are available for the TPS22960?

The TPS22960 is available in 8-pin SOT-23 and 8-pin UQFN packages.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What is the maximum continuous switch current?

The maximum continuous switch current is 500 mA.

What is the typical on-state resistance under different input voltages?

The typical on-state resistance is 342 mΩ at 5.5 V, 435 mΩ at 3.3 V, 523 mΩ at 2.5 V, and 737 mΩ at 1.8 V.

What is the quiescent current?

The typical quiescent current is 0.35 µA.

What are the ESD ratings?

The device is rated for 2000 V HBM and 1000 V CDM ESD protection.
