TPS22924CYZPRB

The TPS22924C is a compact load switch from Texas Instruments, featuring an integrated single load switch with controlled turn-on characteristics. It supports an input voltage range of 0.75 V to 3.6 V and offers a low ON-resistance as low as 18.3 mΩ at 3.6 V.

This device is designed to minimize inrush current through an internally controlled slew rate, with a typical rise time of 800 µs at 3.6 V. It includes a quick output discharge feature via a 1250-Ω on-chip load resistor when the switch is turned off, preventing output float.

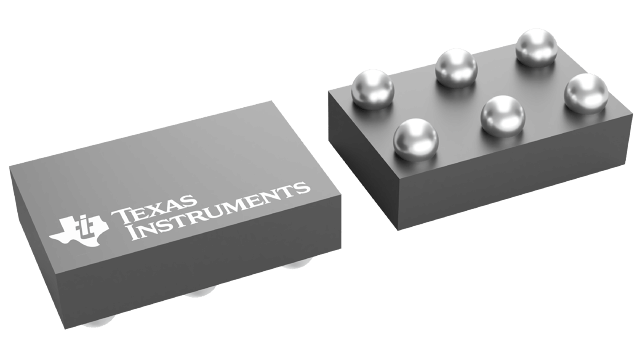

The TPS22924C is available in an ultra-small CSP-6 package measuring 0.9 mm x 1.4 mm with a 0.5-mm pitch, making it suitable for space-constrained applications. It operates over a temperature range of -40°C to 85°C and has a maximum continuous switch current rating of 2 A.

Key features include low shutdown current, low threshold control input, and ESD performance tested per JESD 22 standards. Applications include battery-powered equipment, portable industrial and medical devices, portable media players, and smartphones.
