The TPS22914CYFPR from Texas Instruments is a compact, single-channel load switch featuring low on-resistance and a controlled slew rate. It operates within an input voltage range of 1.05V to 5.5V, making it versatile for various power supply applications.
Key electrical characteristics include a maximum continuous switch current of 2A and a low typical on-resistance of 37mΩ at 5V input. The device also boasts low quiescent current (7.7µA typical) and a low shutdown current (0.5µA typical), contributing to power efficiency.

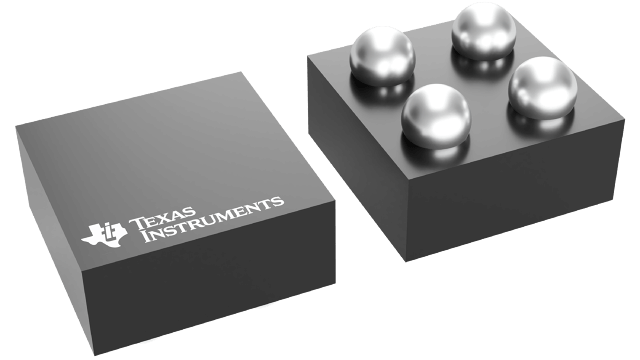

Designed for space-constrained applications, the TPS22914CYFPR is available in an ultra-small wafer-chip-scale package (DSBGA/YFP) measuring 0.74mm x 0.74mm with a 0.4mm pitch and 0.5mm height. It operates across a temperature range of -40°C to 105°C and includes ESD protection tested per JESD 22 standards.
This load switch is suitable for applications requiring controlled power sequencing and protection, such as in portable electronics, consumer devices, and industrial systems where space and power efficiency are critical.
1.05 V to 5.5 V.
2 A.
37 mΩ at 5V input, 38 mΩ at 3.3V, and 43 mΩ at 1.8V.
-40 °C to 105 °C.
DSBGA (YFP) package, 0.74 mm x 0.74 mm, 0.4 mm pitch, 0.5 mm height.
7.7 µA at 3.3V input.
2 kV HBM and 1 kV CDM.
