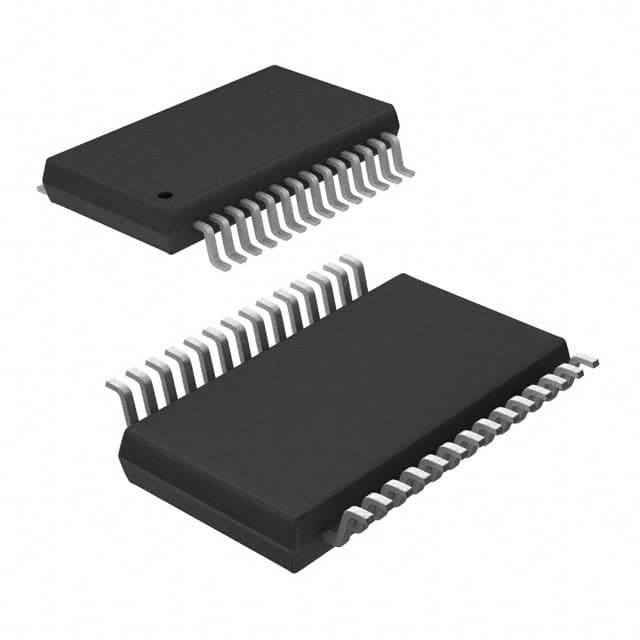

The TPS2216DBR from Texas Instruments is a highly integrated power-interface switch designed for PC Card applications. It consolidates discrete power MOSFETs, logic, current limiting, and thermal protection into a single IC, simplifying power management for systems requiring 3.3V, 5V, and/or 12V power distribution to PC Cards.
Key electrical features include a low Rds(on) of 60 mOhm (typical) for the xVCC switch, a maximum quiescent current of 150 µA, and a standby mode with a typical current limit of 50 mA. The device offers short circuit and thermal protection, along with TTL-logic compatible inputs and break-before-make switching. It supports a 3.3-V low-voltage mode, enabling 3.3-V switching without a 5-V supply, which is beneficial for low-power system designs like sleep modes.
This switch meets PC Card standards and is available in a 30-pin SSOP package. Its integrated features, such as current limiting that eliminates the need for fuses and current-limit reporting for fault isolation, make it suitable for applications in notebook computers, desktop computers, PDAs, digital cameras, and bar-code scanners.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range for the TPS2216DBR is -40°C to 125°C (TJ).
The TPS2216DBR is available in a 30-SSOP (0.209", 5.30mm Width) package.
The maximum output current for the TPS2216DBR is 1A.
The typical Rds On for the TPS2216DBR is 60 mOhm.
Yes, the TPS2216DBR includes fault protection such as current limiting (fixed) and over temperature protection.
The TPS2216DBR supports load voltages of 3.3V, 5V, and 12V.
The mounting type for the TPS2216DBR is Surface Mount.
