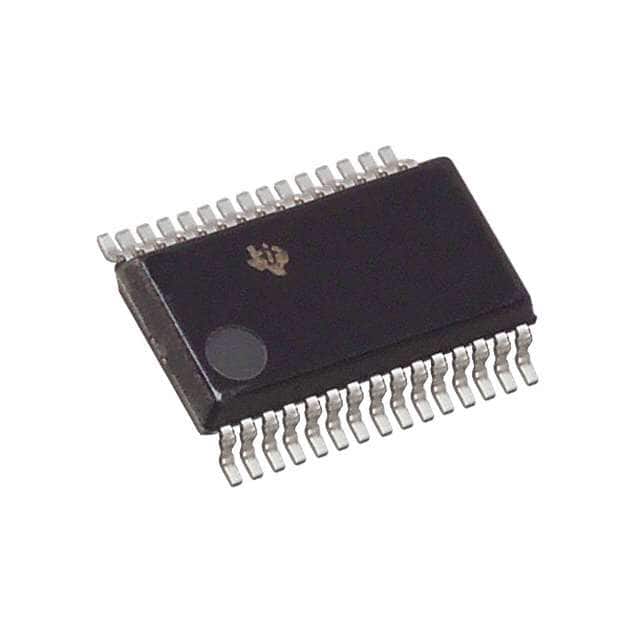

TPS2206IDBR The Texas Instruments TPS2206IDBR is a dual-slot PC card power-interface switch designed for integrated power management. It offers a 1A current rating and operates within a -40°C to 85°C temperature range.
Mfr Part #:

TPS2206IDBR

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TPS2206IDBR is a dual-slot PC card power-interface switch designed for integrated power management. It offers a 1A current rating and operates within a -40°C to 85°C temperature range.
✓ Total Stock: 49,065 pcs
$ Price Range: $0.32

TPS2206IDBR Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
25,829 pcs
On Request
25829 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
20,405 pcs
On Request
20405 pcs On Request 1 On Request On Request 1036+5 On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
2,165 pcs
On Request
2165 pcs On Request 1 On Request On Request 1036+5 On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
666 pcs
On Request
666 pcs On Request 1 On Request On Request 0006P/ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPS2206IDBR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Fault Protection
Features
Halogen Free
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Ratio
Rds On (Typ)
SVHC Present
Supplier Device Package
Switch Type
Voltage
View Similar Products (0)

TPS2206IDBR Description

Short technical summary and product information.

The TPS2206IDBR from Texas Instruments is a PC Card power-interface switch providing an integrated power-management solution for two PC Cards. It combines MOSFETs, logic, current limiting, and thermal protection into a single IC.



This device supports 3.3-V, 5-V, and 12-V PC Card power through a P2C serial interface. Key electrical specifications include a 1A current rating, a typical on-resistance of 103mOhm, and a 30-SSOP package. It features fault protection including current limiting and over-temperature protection.



The TPS2206IDBR is compatible with PC Card standards and includes a RESET function for system initialization. It also supports a 3.3-V low-voltage mode, facilitating low-power system designs. The operating temperature range is -40°C to 85°C.



Designed for surface mounting, the TPS2206IDBR is suitable for applications requiring reliable power control for PC Card interfaces.

TPS2206IDBR Quick Information

Product Type: Power Distribution Switch
Canonical Name: TPS2206 Dual-Slot PC Card Power-Interface Switch
Subcategory: Load Drivers

TPS2206IDBR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TPS2206IDBR Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPS2206IDBR Features

  • Dual-slot PC card power switch.
  • Supports 3.3V, 5V, and 12V PC Cards.
  • 1A current rating with low Rds(on).
  • Integrated current limiting and thermal protection.
  • Serial interface for control.

TPS2206IDBR Applications

  • Power management for PC Card slots.
  • Enables 3.3V low-voltage operation.
  • System initialization via RESET pin.
  • Suitable for portable electronic devices.

TPS2206IDBR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the current rating for the TPS2206IDBR?

The TPS2206IDBR has a current rating of 1A.

What is the typical on-resistance of the TPS2206IDBR?

The typical on-resistance for the TPS2206IDBR is 103mOhm.

What is the operating temperature range for the TPS2206IDBR?

The TPS2206IDBR operates in a temperature range of -40°C to 85°C.

What package type is the TPS2206IDBR available in?

The TPS2206IDBR is available in a 30-SSOP package.

What voltages are compatible with the TPS2206IDBR PC Card interface?

The TPS2206IDBR is compatible with 3.3-V, 5-V, and 12-V PC Cards.

Does the TPS2206IDBR support a low-voltage mode?

Yes, the TPS2206IDBR supports a 3.3V low-voltage mode.
