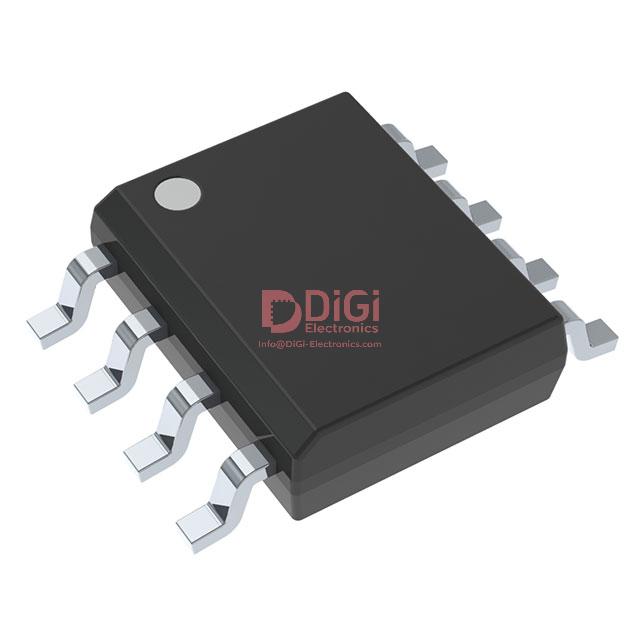

The Texas Instruments TPS2061DG4 is a versatile N-Channel power switch suitable for various power management applications. It operates with a load voltage range of 2.7V to 5.5V and can deliver a maximum output current of 1A.
Key electrical characteristics include a low typical Rds On of 70mOhm, ensuring efficient power delivery. The switch type is general purpose, with a high-side output configuration and an On/Off interface. Integrated fault protection features such as fixed current limiting, over-temperature protection, and undervoltage lockout (UVLO) enhance system reliability.
This component is housed in an 8-SOIC package, designed for surface mounting. It operates within a temperature range of -40°C to 125°C (TJ). The TPS2061DG4 is part of the Power Distribution Switches, Load Drivers category, providing essential power control functionalities for electronic designs.
Compliance information indicates RoHS3 compliance, MSL 1 Unlimited, and REACH unaffected status, though these are based on available database information and may require verification.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The load voltage range is 2.7V to 5.5V.
It comes in an 8-SOIC (0.154-inch, 3.90mm width) package.
The operating junction temperature range is -40°C to 125°C.
The maximum continuous output current is 1A.
The typical on-resistance is 70mOhm.
Fault protection includes fixed current limiting, over-temperature shutdown, and under-voltage lockout (UVLO).
No, a separate supply voltage is not required.
