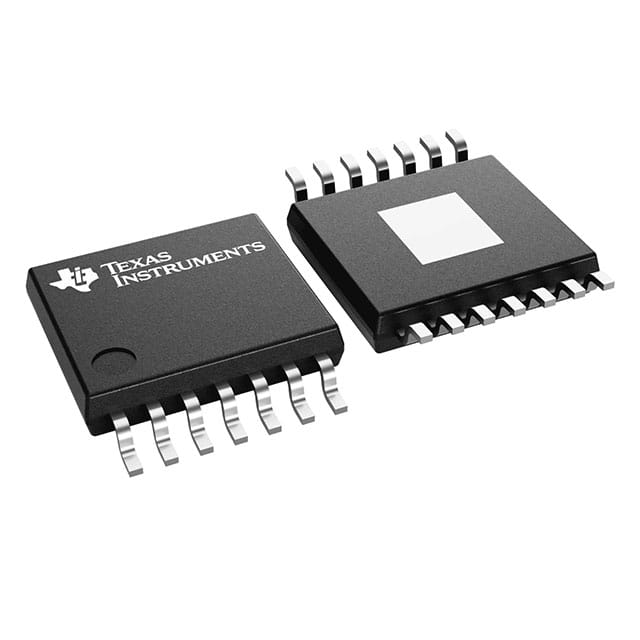

The TPS1HC100BQPWPRQ1 from Texas Instruments is an automotive-qualified, single-channel smart high-side switch. It operates over a wide voltage range of 3V to 28V and offers a low typical on-resistance of 100mΩ.
This device provides an adjustable current limit ranging from 0.633A to 6.9A, along with features like automotive load dump compatibility, current sense output, fault reporting, inductive load compatibility, inrush current control, short circuit protection, and thermal shutdown. It is designed for applications requiring robust power control and diagnostics.
The TPS1HC100BQPWPRQ1 is available in a 14-HTSSOP package and is suitable for surface mounting. Its internal features include adjustable current limit, fault reporting, and under-voltage lockout, making it a versatile solution for automotive power management.
With a functional safety capability, this switch is designed to meet stringent automotive requirements. The low standby current of less than 0.5µA at 85°C further enhances its suitability for power-sensitive automotive applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.58 | $0.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 3V to 28V.
It is available in a 14-PowerTSSOP (0.173", 4.40mm Width) package, also referred to as 14-HTSSOP.
-40°C to 125°C.
The current limit is adjustable from 0.633A to 6.9A.
The typical on-resistance is 100mΩ.
N-Channel high-side.
Short-circuit protection, thermal shutdown, undervoltage lockout, reverse battery protection, and over load protection.
