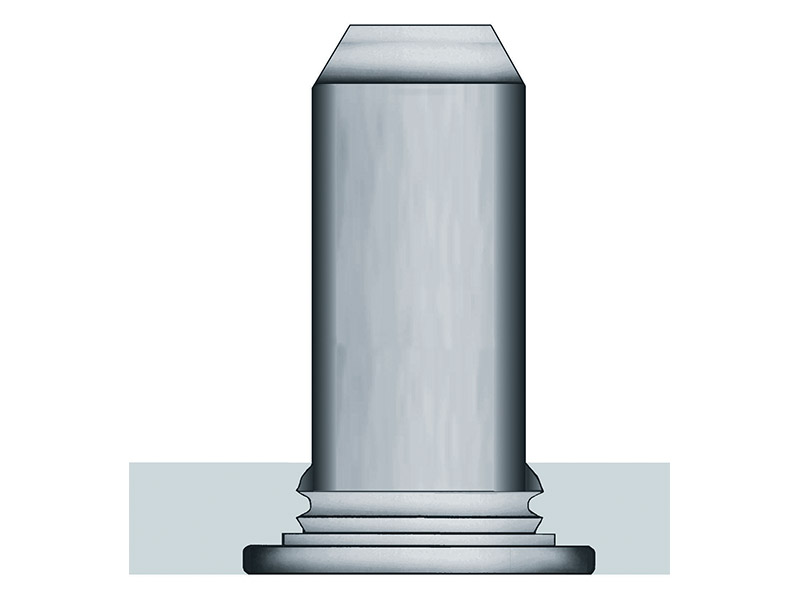

The TPS-250-12 from Penn Engineering is a self-clinching pilot pin, part of the TPS product family. Constructed from 300 Series Stainless Steel, it is designed for use in sheet materials with a hardness of HRB 70 / HB 125 or less. The pin features a unified thread type and a passivated and/or tested finish per ASTM A380.
Key mechanical specifications include a diameter of 0.177 inches and a length of 0.75 inches. The required hole size in the sheet is +0.003 - .000 inches. It also specifies a minimum distance from the hole centerline to the edge of 0.31 inches and a pitch of 0.25 inches.
Performance data indicates typical installation force of 250 lbs. and pushout force of 270 lbs. for aluminum sheets with a hardness of 18 HRB. For steel sheets with a hardness of 62 HRB, the typical installation force is 250 lbs. and pushout force is 500 lbs.
This pilot pin is suitable for applications requiring reliable alignment and fastening in sheet metal assemblies. Its self-clinching design ensures permanent installation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TPS-250-12 pilot pin is made of 300 Series Stainless Steel.
The TPS-250-12 is designed for use in sheet hardness HRB 70 / HB 125 or less.
The typical pushout force for the TPS-250-12 in aluminum with 18 HRB hardness is 270 lbs.
The typical pushout force for the TPS-250-12 in steel with 62 HRB hardness is 500 lbs.
The diameter of the TPS-250-12 pilot pin is 0.177 inches.
The length of the TPS-250-12 pilot pin is 0.75 inches.
