| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Duration | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

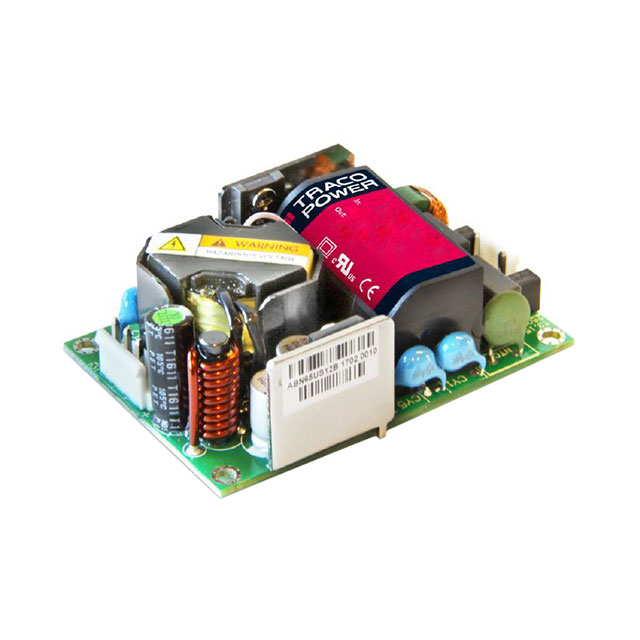

The Traco Power TPP 65-148A is an open frame AC/DC converter designed for versatile power supply needs. It delivers 65W of power with a single 48V output, capable of handling 1.36A.
This converter operates with a universal input voltage range of 85-264 VAC or 120-370 VDC, making it suitable for global applications. It boasts high efficiency of 93% and an isolation voltage of 4 kV. The operating temperature range is -40°C to 85°C with derating.
With dimensions of 76.2mm x 50.8mm x 23.9mm, it is designed for chassis mounting. The TPP 65-148A is approved by CB, CE, and cURus agencies and is specified for medical applications. It features adjustable output and universal input capabilities.
Compliance includes RoHS3 status, REACH unaffected, and an MSL of 1 Unlimited. The base product number is TPP 65.
85-264 VAC or 120-370 VDC.
48V at 1.36A.
-40°C to 85°C with derating.
93%.
4kV.
CB, CE, cURus per 60601-1 medical standard.
Open frame.
