| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage |

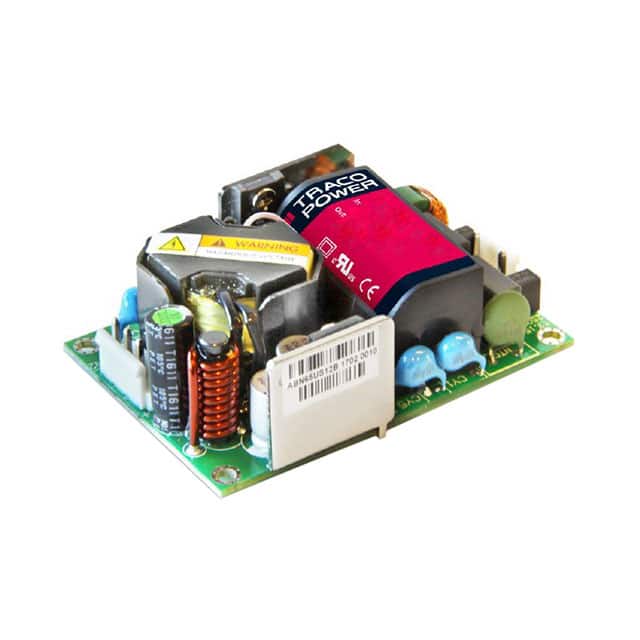

This Traco Power TPP 65-105A-J is an open frame AC/DC converter designed for reliable power conversion in various applications, including medical. It features a universal input and provides a 50W output power with a 10A current capability.
The converter is suitable for chassis mounting, offering a compact solution with dimensions of 76.2mm x 50.8mm x 23.9mm. It operates efficiently with 90% efficiency and boasts a wide operating temperature range from -40°C to 85°C, with derating applied at higher temperatures. The unit also includes 4kV of insulation voltage for enhanced safety and is approved by CB, CE, and cURus agencies.
Key electrical specifications include a single output and a 50W power rating. The operating temperature range is critical for applications requiring consistent performance under varying environmental conditions. Its open frame construction facilitates integration into custom power solutions.
5V DC.
-40°C to 85°C with derating.
Chassis Mount.
90%.
4 kV.
CB, CE, cURus.
50W.
