| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

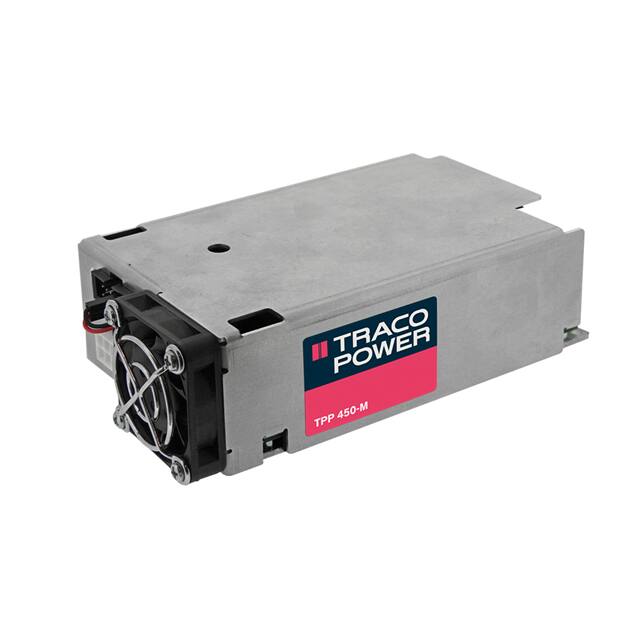

The TRACO Power TPP 450-148-M is a high-power density, enclosed AC/DC power supply designed for medical and industrial applications. It features a wide AC input range of 85~264Vac and provides a stable 48Vdc output at up to 9.4 Amps, delivering a maximum of 450 Watts.
Key electrical specifications include 94% efficiency and isolation voltage of 4kV. The operating temperature range is -40°C to 80°C with derating. This power supply is built to meet stringent safety standards, indicated by its compliance with 60601-1 and 62368-1.
Mechanically, the TPP 450-148-M is chassis mountable with dimensions of 148.1mm x 80.0mm x 40.6mm. Its enclosed type and features like adjustable output, DC input capability, PFC, and remote on/off make it suitable for various demanding applications.
The input voltage range is 85~264Vac.
It provides 48Vdc output at 9.4A, delivering 450W.
The operating temperature range is -40°C to +80°C with derating.
It complies with 60601-1 (medical) and 62368-1 (IT/audio/video) standards.
The typical efficiency is 94%.
The isolation voltage is 4 kV.
Dimensions are 148.1mm (length) x 80.0mm (width) x 40.6mm (height).
