| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

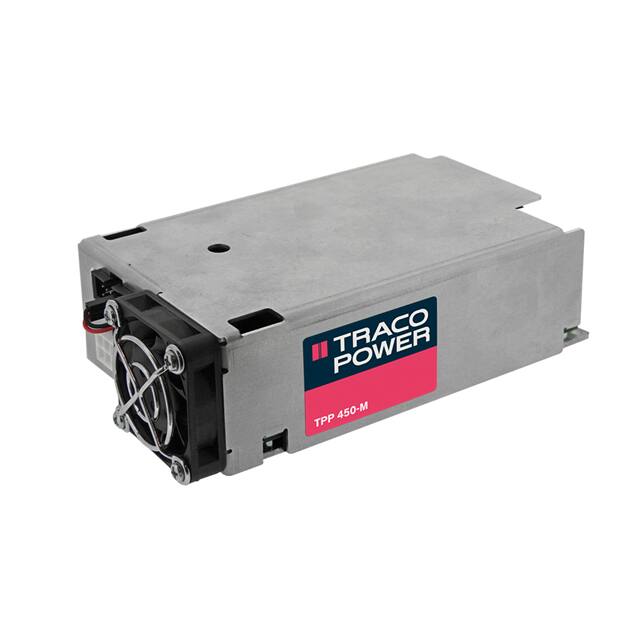

The Traco Power TPP 450-136-M is a high-performance AC-DC power module designed for demanding applications. It delivers a robust 450W of power with a single 36V DC output at 12.5A.
Key electrical specifications include a high efficiency of 93% and a wide universal input voltage range of 85-264 VAC. The module also offers an isolation voltage of 4 kV, making it suitable for various industrial and medical environments.
Designed for ease of integration, the TPP 450-136-M features a chassis mount type and comes in a compact enclosure measuring 148.1mm x 80.0mm x 40.6mm. Its features include adjustable output, DC input capability, PFC, standby output, remote on/off, and universal input, providing flexibility for different system designs.
This power module is approved by CB, CE, and cURus, and is suitable for ITE (Commercial) and Medical applications. It operates within a temperature range of -40°C to 80°C with derating.
The TPP 450-136-M has a single output voltage of 36V DC and a maximum output current of 12.5A.
The TPP 450-136-M has a power rating of 450W.
The efficiency of the TPP 450-136-M is 93%.
The TPP 450-136-M accepts a universal input voltage range of 85-264 VAC and 120-370 VDC.
The operating temperature range for the TPP 450-136-M is -40°C to 80°C, with derating applied.
The TPP 450-136-M is designed for chassis mount installation.
Key features include adjustable output, DC input capability, PFC, standby output, remote on/off, and universal input.
