| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

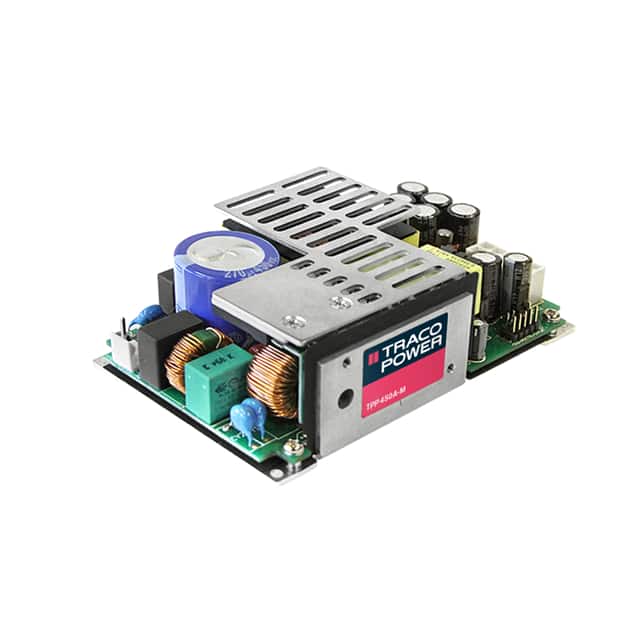

The Traco Power TPP 450-124A-M is a high-performance AC/DC power supply designed for demanding applications. This open frame unit delivers a stable 24Vdc output with a maximum current of 18.75A, providing up to 450W of power.
With a wide input voltage range of 85~264Vac, it offers universal compatibility. Key electrical specifications include 93% efficiency and 4kV isolation voltage. The operating temperature range is -40°C to 85°C with derating, ensuring reliable performance in various environments.
Designed for both medical and ITE (Commercial) applications, this power supply meets standard requirements such as 60601-1 and 62368-1. Its mechanical dimensions are 127.0mm x 76.2mm x 40.1mm, and it features a chassis mount type for easy integration.
Additional features include adjustable output, DC input capability, Power Factor Correction (PFC), standby output, and remote on/off functionality. The TPP 450-124A-M is RoHS3 compliant and has an MSL of 1.
The output voltage is 24Vdc.
The maximum output current is 18.75 Amps.
The maximum power output is 450 Watts (Forced Air).
The input voltage range is 85 to 264Vac.
The operating temperature range is -40°C to 85°C (With Derating).
The dimensions are 127.0mm x 76.2mm x 40.1mm.
It complies with 60601-1 and 62368-1 standards.
