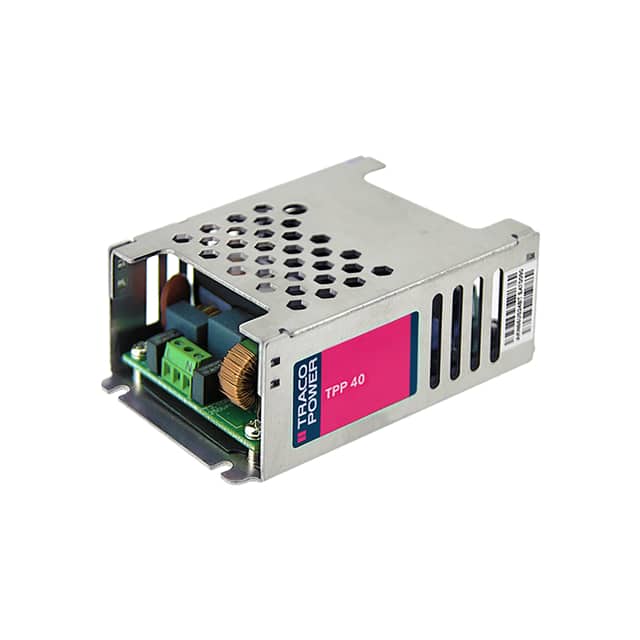

The Traco Power TPP 40 Series TPP 40-221 is a 60W AC/DC enclosed power supply designed for demanding applications. It features dual outputs of 12VDC and 5VDC, with a maximum output current of 3.34A for the 12V output and 6A for the 5V output. The unit operates with a universal input voltage range of 85-264 VAC and offers an efficiency of up to 89% at full load.
This power supply is certified according to IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP, making it suitable for medical devices. It boasts a low leakage current of less than 75 µA, ideal for BF (body floating) applications. The operating temperature range is -40°C to +70°C at full load, extending to 85°C with 50% load derating. Its compact dimensions of 102.4mm x 60.5mm x 34.5mm and chassis mount type facilitate integration into space-critical designs.
Compliance includes IEC 60601-1-2 ed. 4 for EMC characteristics, making it suitable for industrial and domestic fields. It also meets ErP directive requirements with low no-load power consumption. The TPP 40-221 is built with industrial-grade components and excellent thermal management for high reliability, backed by a 5-year product warranty.
The TPP 40-221 provides dual outputs of +12 VDC and +5 VDC.
The maximum output current for the 12 VDC output is 3.34 A.
The maximum output current for the 5 VDC output is 6 A.
The total power output is 60W.
The efficiency is typically 89% at full load and Vin = 230 VAC.
The operational input voltage range is 85-264 VAC and 120-370 VDC.
The operating temperature range is -40°C to +70°C at full load, and up to 85°C with 50% load derating.
