| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

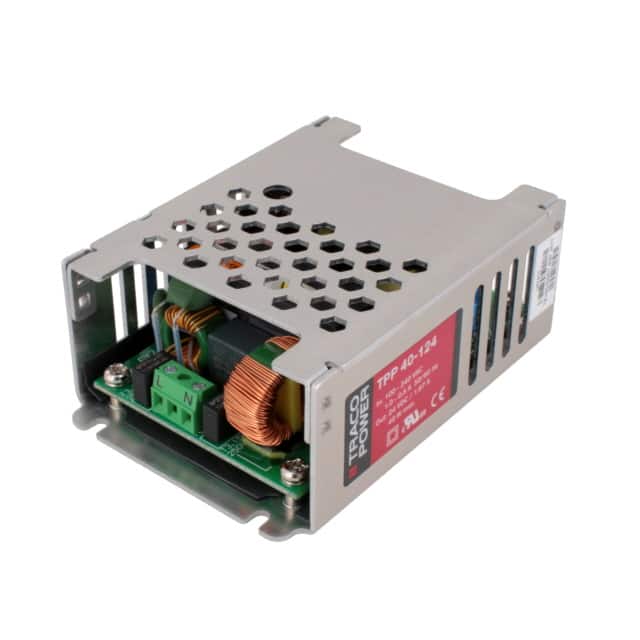

The Traco Power TPP 40-124 is a 40 Watt AC/DC power supply from the TPP 40 Series. It provides a single 24VDC output at 1.67A, with a maximum power of 40W and a typical efficiency of 92% at full load.
This enclosed power supply is designed for chassis mounting and features universal input voltage (85-264 VAC). It operates across a wide temperature range of -40°C to 85°C with derating. The unit is certified according to IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP and has low leakage current (<75 µA), making it suitable for BF applications.
Compliance includes IEC 60601-1-2 ed. 4 for EMC, and it is prepared for Protection Class I and II. The dimensions are 89.7mm x 60.5mm x 33.3mm. It is also ready to meet ErP directive requirements with low no-load power consumption.
This power supply is an ideal solution for medical devices and other safety-critical applications requiring high reliability and excellent thermal management.
24 VDC.
Enclosed chassis mount, dimensions 89.7mm x 60.5mm x 33.3mm.
-40°C to +85°C with derating, full load up to +70°C.
92% at full load.
85-264 VAC (operational) or 120-370 VDC.
Less than 75 µA, suitable for BF applications.
5-year product warranty.
