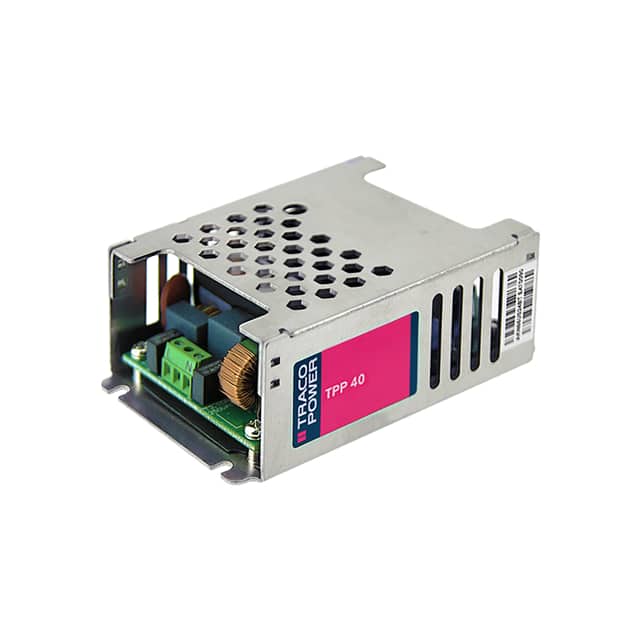

The Traco Power TPP 40-115 is a 40 Watt AC/DC enclosed power supply featuring a single 15V output at 2.67A. It boasts up to 92% efficiency and a universal input voltage range of 85-264 VAC.
Designed for demanding applications, this power supply meets stringent medical safety standards (IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP) with low leakage current (<75 µA) suitable for BF applications. It also complies with EMC standards IEC 60601-1-2 ed.4.
The unit operates within a wide temperature range of -40°C to 85°C with derating and features a compact chassis mount package measuring 89.7mm x 60.5mm x 33.3mm. Its enclosed design and robust construction make it ideal for medical devices and safety-critical systems.
The TPP 40-115 has a single output voltage of 15 VDC.
The maximum output current for the TPP 40-115 is 2.67 A.
The TPP 40-115 has a power rating of 40W.
The efficiency of the TPP 40-115 is up to 92%.
The operating temperature range is -40°C to 85°C with derating.
The dimensions are 89.7mm (Length) x 60.5mm (Width) x 33.3mm (Height).
The TPP 40-115 is certified by CB, CE, and cURus.
