| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

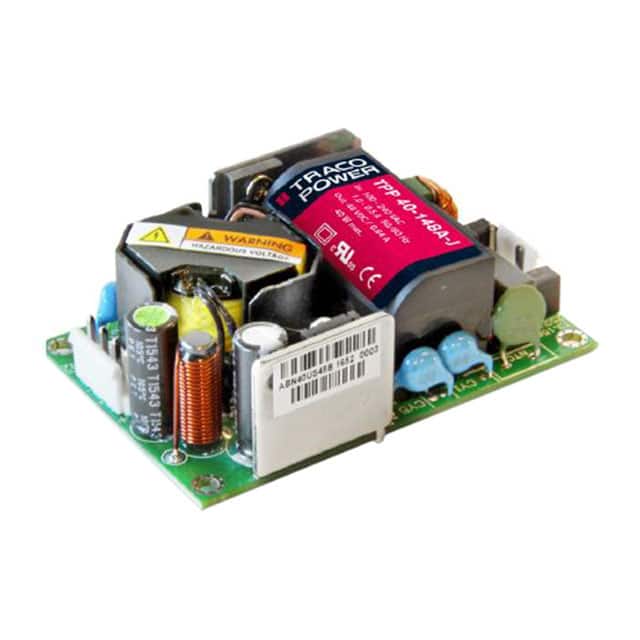

The Traco Power TPP 40-112A-J is part of the TPP 40A Series, providing 40 Watts of AC/DC power in an open frame, chassis mount package. This model delivers a 12VDC output at a maximum current of 3.34A, with a typical efficiency of 92% and universal input capability.
Designed for demanding applications, it meets stringent medical safety standards (IEC/EN/ES 60601-1 edition 3.2) with 2 x MOPP and low leakage current (<75 µA) suitable for BF applications. It also complies with EMC standards (IEC 60601-1-2 ed.4) and operates up to 5000m altitude. The operating temperature range is -40°C to +70°C at full load, extending to 85°C with derating.
Key features include reinforced double I/O isolation, compliance with IEC 62368-1 and UL 62368-1 standards, and a 5-year warranty. The dimensions are 76.2mm x 50.8mm x 23.9mm.
The TPP 40-112A-J has an output voltage of 12 VDC, adjustable between 10.8 VDC and 13.2 VDC.
The maximum output current for the 12 VDC model is 3340 mA.
The efficiency of the TPP 40-112A-J is 92%.
The operating temperature range is -40°C to 85°C with derating.
It is certified according to IEC/EN/ES 60601-1 edition 3.2, IEC 60601-1-2 ed. 4, IEC 60601-1, IEC 62368-1, ES 60601-1, UL 62368-1, CB, CE, and cURus.
The dimensions are 76.2mm (Length) x 50.8mm (Width) x 23.9mm (Height).
