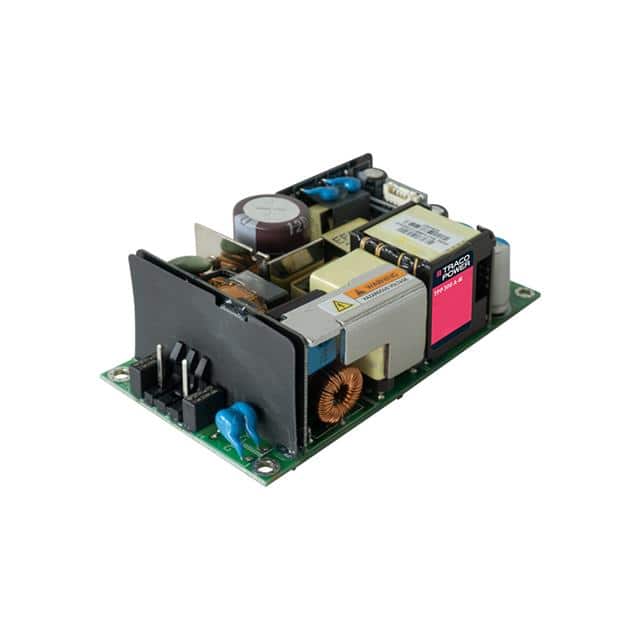

The Traco Power TPP 300-112A-M is an AC/DC converter designed for ITE (Commercial) and Medical applications. This open frame unit offers a power output of 180W, with a peak capability of 300W under forced air conditions, and delivers 25A of current.
Key electrical specifications include a universal input and an efficiency rating of 91%. It features adjustable output, DC input capability, Power Factor Correction (PFC), and remote on/off and sense functionalities. The converter provides a 3 kV isolation voltage.
Mechanically, the TPP 300-112A-M has a chassis mount type and measures 101.6mm in length, 50.8mm in width, and 32.0mm in height. It operates within a wide temperature range of -40°C to 85°C, with derating applied at higher temperatures.
Compliance is met with standards such as 60601-1 and 62368-1, and it holds approvals from CB, CE, cURus, and UKCA. The RoHS status is RoHS3 Compliant, and it has an MSL rating of 1.
The output voltage is 12V and the current is 25A.
It delivers 180W continuous power, or 300W with forced air cooling.
The efficiency is 91%.
The operating temperature range is -40°C to 85°C with derating.
It uses chassis mount.
It is approved by CB, CE, cURus, and UKCA agencies.
It is suitable for ITE (commercial) and medical applications.
