| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Isolation | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

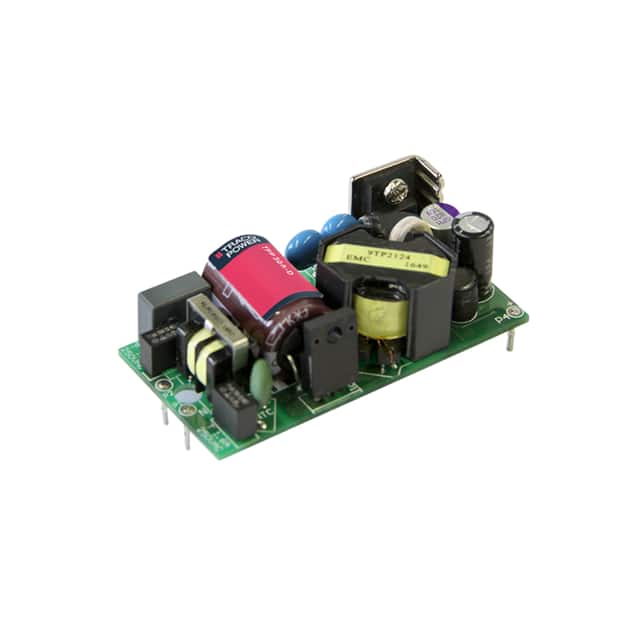

The Traco Power TPP 30-148A-D is a 30 Watt AC/DC medical power supply from the TPP 30A-D series. This open-frame power supply offers a high power density and is designed for applications requiring medical safety standards.
Key electrical specifications include an input voltage range of 85-264 VAC or 120-370 VDC, with a rated output of 48 VDC at 630 mA. It boasts an efficiency of up to 92% and features like adjustable output and universal input. The operating temperature range is -40°C to +85°C with derating.
Designed for reliability, it operates up to 5000m altitude and has a low leakage current of less than 75 µA, making it suitable for BF applications. Compliance includes IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP and EMC compliance to IEC 60601-1-2 4th edition.
The unit is housed in a compact package measuring 69.7mm x 34.6mm x 24.1mm and utilizes through-hole mounting. It is certified by CB, CE, and cURus.
85-264 VAC (full range) or 100-240 VAC (rated), also 120-370 VDC operational.
5-DIP Module, through hole mounting.
-40°C to 85°C with derating.
48 VDC output at 630 mA maximum.
Typical efficiency is 92%.
2 x MOPP (Means of Patient Protection) isolation.
Less than 75 µA, rated for BF applications.
