| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Package / Case | |
| Power (Watts) | |
| SVHC Present | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

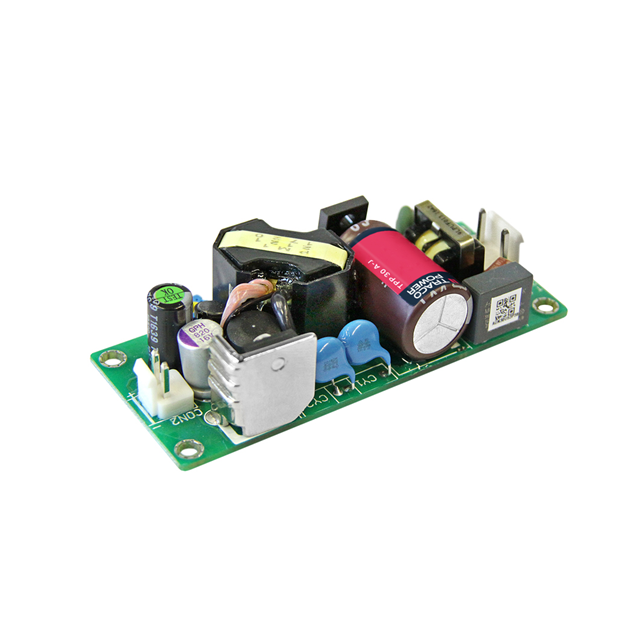

The Traco Power TPP 30-136A-J is a 30 Watt AC/DC open frame power supply from the TPP 30A-J series. It provides a 36VDC output with a maximum current of 840 mA, suitable for applications requiring up to 30W of power.
This converter features a universal input voltage range of 85-264 VAC and operates with an efficiency of up to 90%. It is designed for chassis mounting and has dimensions of 84.8mm x 34.5mm x 19.6mm. The unit offers reinforced double I/O isolation and operates within a temperature range of -40°C to +85°C with derating.
Key specifications include a 4 kV isolation voltage, low leakage current (<75 µA), and compliance with medical safety standards like IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP. It also meets EMC compliance to IEC 60601-1-2 4th edition.
Applications include household appliances, ITE (Commercial), and medical equipment. The power supply is certified by CB, CE, and cURus agencies.
The TPP 30-136A-J has an adjustable output voltage of 36 VDC.
The maximum output current for the TPP 30-136A-J is 840 mA.
The TPP 30-136A-J has a power rating of 30W.
The TPP 30-136A-J has a typical efficiency of 90%.
The operating temperature range for the TPP 30-136A-J is -40°C to 85°C with derating.
The dimensions of the TPP 30-136A-J are 84.8mm x 34.5mm x 19.6mm.
The TPP 30-136A-J is RoHS3 Compliant.
