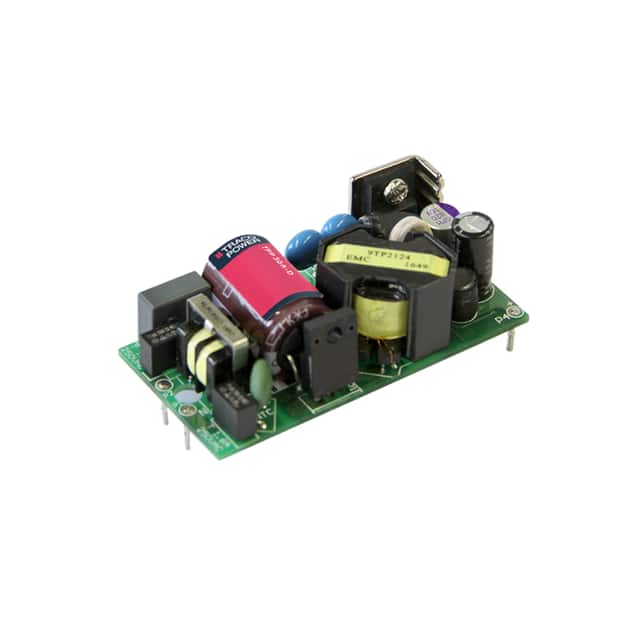

The Traco Power TPP 30-136A-D is an open-frame AC/DC power supply designed for medical and ITE applications. It delivers 30 watts of power with a nominal output voltage of 36 VDC and a maximum current of 840mA.
This converter operates with a wide input voltage range of 85-264 VAC or 120-370 VDC, offering flexibility for various power sources. It boasts a high efficiency of up to 92% and features adjustable output, universal input, and compliance with medical standards like IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP. The low leakage current of less than 75 µA makes it suitable for BF applications.
With an operating temperature range from -40°C to +60°C at full load, and up to 85°C with 50% load derating, it is built for demanding environments. The unit is certified by CB, CE, and cURus. Its compact dimensions (69.7mm x 34.6mm x 24.1mm) and through-hole mounting make it suitable for integration into various systems.
The TPP 30A-D series is designed to meet ErP directive requirements with low no-load power consumption (<60 mW) and comes with a 5-year product warranty.
85 to 264 VAC or 120 to 370 VDC.
5-DIP module, through hole mount.
-40°C to +85°C with derating above +60°C (50% load at +85°C).
Yes, adjustable from 32.4 to 39.6 VDC.
Less than 75 µA for BF applications.
5-year warranty.
Up to 5000 m.
