| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

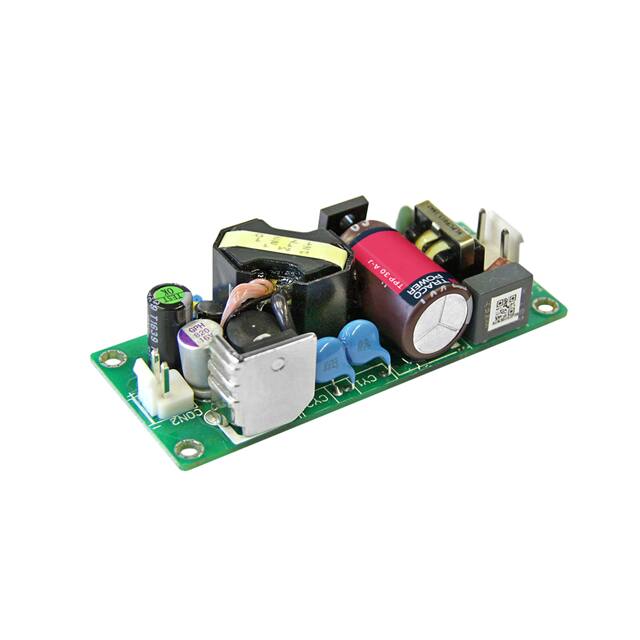

The Traco Power TPP 30-115A-J is a 30 Watt AC/DC power supply designed with an open frame construction for high power density. It provides a single 15VDC output with an adjustable range and a maximum current of 2A.
This power supply operates with a universal input voltage range of 85-264 VAC and features an efficiency of up to 92%. It is certified according to medical safety standards IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP and meets EMC compliance to IEC 60601-1-2 4th edition. The low leakage current of less than 75 µA makes it suitable for BF applications.
Designed for demanding environments, the TPP 30-115A-J operates across a wide temperature range from -40°C to +85°C with derating. Its compact dimensions of 3.34" x 1.36" x 0.77" (84.8mm x 34.5mm x 19.6mm) make it ideal for integration into various systems. Mounting is typically chassis mount.
Key features include adjustable output, universal input capability, and compliance with safety standards for medical, ITE, and household appliance applications. It also includes features like risk management according to ISO 14971 and acceptance criteria according to IPC-A-610 Level 3.
The TPP 30-115A-J has an adjustable output voltage of 15 VDC, with a nominal range of 13.5 to 16.5 VDC.
The maximum output current for the TPP 30-115A-J is 2 A.
The TPP 30-115A-J has a power rating of 30W.
The operating temperature range is -40°C to +85°C with load derating.
The dimensions are 84.8mm x 34.5mm x 19.6mm (3.34" L x 1.36" W x 0.77" H).
It is certified according to IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP, and meets EMC compliance to IEC 60601-1-2 4th edition. It also holds CB, CE, and cURus approvals.
