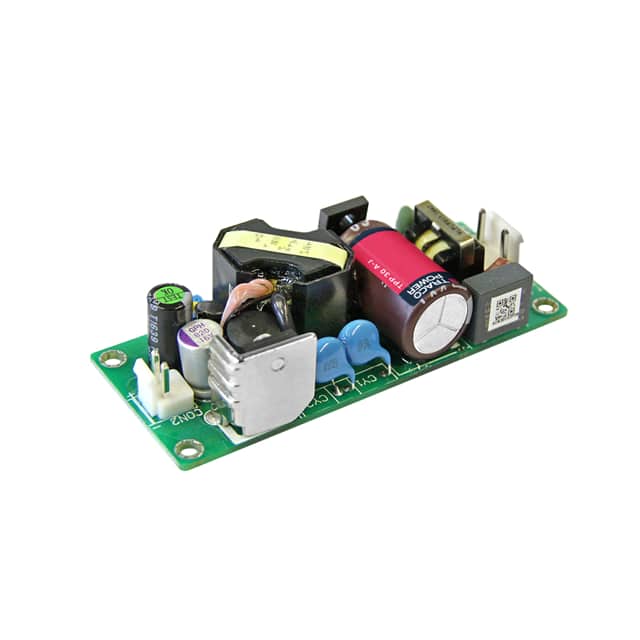

The Traco Power TPP 30-103A-J is a high power density, open frame AC/DC power supply designed for demanding applications. It delivers 20W of output power at 3.3VDC with a maximum current of 6A and an efficiency of 84%.
This power supply operates with a universal AC input range of 85-264 VAC and features a wide operating temperature range from -40°C to 85°C with derating. It meets stringent medical safety standards, including IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP, and ITE safety standards like UL/IEC/EN 62368-1. The low leakage current of less than 75 µA makes it suitable for BF applications.
Designed for chassis mounting, the TPP 30-103A-J offers reinforced double I/O isolation and operates up to 5000m altitude. Its compact dimensions of 3.34" x 1.36" x 0.77" make it ideal for integration into various systems requiring reliable power conversion.
The output voltage is 3.3 VDC, adjustable within a range of 2.97 - 3.63 VDC.
The maximum output current is 6 A.
The output power is rated at 20W.
The efficiency is typically 84%.
The operating temperature range is -40°C to 85°C with derating.
The dimensions are 84.8mm (3.34") L x 34.5mm (1.36") W x 19.6mm (0.77") H.
It is certified according to IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP and UL/IEC/EN 62368-1.
