| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

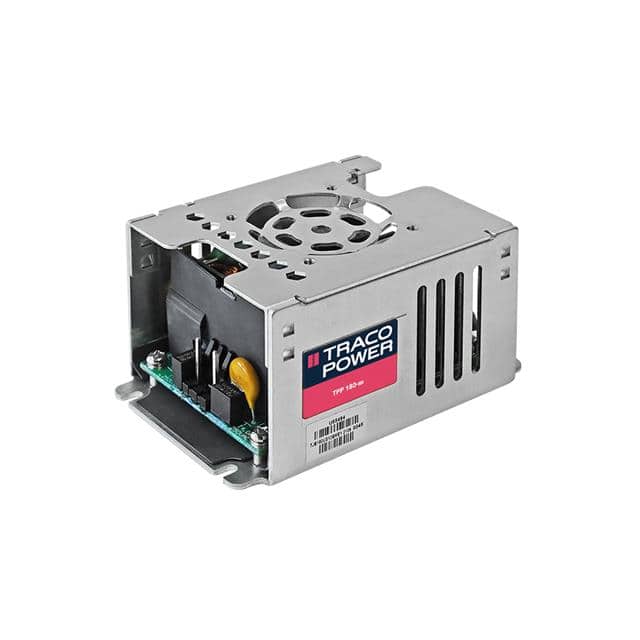

The Traco Power TPP 180-148-M is an AC-DC power module designed for ITE (Commercial) and Medical applications. It delivers 150W of power, with a maximum of 180W under forced air conditions, and provides a single 48V DC output at 3.75A.
This module operates with an efficiency of 93% and features a universal input voltage range of 85-264 VAC. Key features include adjustable output, DC input capability, Power Factor Correction (PFC), and a standby output. The isolation voltage is rated at 4 kV.
Designed for chassis mounting, the TPP 180-148-M has a compact size of 91.4mm x 62.0mm x 44.5mm. It operates within an ambient temperature range of -40°C to 85°C with derating. The series is compliant with CB, CE, cURus, EAC, and UKCA standards.
The output voltage is 48V and the output current is 3.75 A.
The input voltage range is 85-264 VAC (100-240 VAC nominal) or 120-370 VDC.
The operating temperature range is -40°C to 85°C with derating.
It is approved to CB, CE, cURus, EAC, and UKCA standards, meeting 60601-1 (medical) and 62368-1 (ITE) safety standards.
The efficiency is 93%.
The isolation voltage is 4 kV.
The dimensions are 91.4 mm x 62.0 mm x 44.5 mm.
