| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

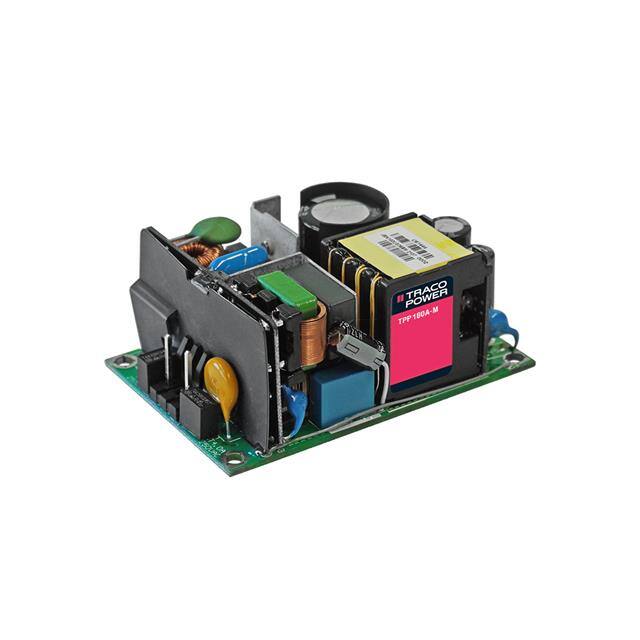

The Traco Power TPP 180-112A-M is an open frame AC/DC converter designed for ITE (Commercial) and Medical applications. It provides a power output of 150W, with a peak of 180W under forced air conditions, and delivers 15A of current.
Key electrical specifications include a universal input, adjustable output, and Power Factor Correction (PFC). The converter operates with 92% efficiency and features isolation voltage of 4 kV. It is designed for chassis mounting and has dimensions of 76.2mm x 50.8mm x 31.5mm.
This model is compliant with standards such as 60601-1 and 62368-1, and carries approvals from CB, CE, cURus, EAC, and UKCA. The operating temperature range is -40°C to 85°C with derating. It also includes features like DC Input Capability and a Standby Output.
The Traco Power TPP 180-112A-M is an open frame AC/DC converter.
The power rating is 150W, with a peak of 180W under forced air.
The output current is 15 A.
The dimensions are 76.2mm x 50.8mm x 31.5mm.
The operating temperature range is -40°C to 85°C with derating.
It complies with 60601-1 and 62368-1 standards.
