| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

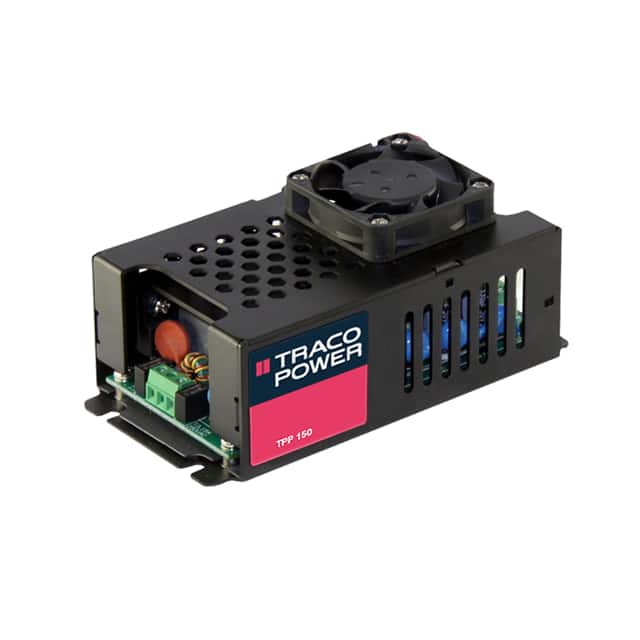

The Traco Power TPP 150-148 is part of the TPP 150 Series, offering a 150 Watt AC/DC encased power supply solution. This model provides a nominal 48VDC output with a maximum current of 3.13A and features high efficiency up to 92%.
Designed for versatility, it accepts a wide AC input range of 85-264 VAC and operates at 50/60 Hz. Key electrical features include active power factor correction (>0.95), adjustable output voltage (±10%), and low leakage current (<100 µA), making it suitable for BF applications.
The unit is built with a chassis mount type and has dimensions of 116.8mm x 62.0mm x 49.3mm. It is certified according to IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP and also meets IEC 62368-1 and UL 62368-1 standards. The operating temperature range is -25°C to +70°C at full load, extending to 80°C with derating.
This power supply is ideal for applications requiring high reliability and safety, including ITE (Commercial) and Medical devices. It comes with a 5-year product warranty.
The nominal output voltage is 48VDC, adjustable by ±10% via a trim potentiometer.
Full load operation from -25°C to 70°C, with derating to 80°C at 40% load.
Input-to-output isolation is rated at 4kV.
Operational range is 85-264 VAC, rated range is 100-240 VAC, with a frequency of 47-440 Hz.
Yes, it is certified to IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP and has low leakage current (<100 µA) for BF applications.
Typical efficiency is 92%.
It is an enclosed chassis-mount unit measuring 116.8mm x 62.0mm x 49.3mm.
