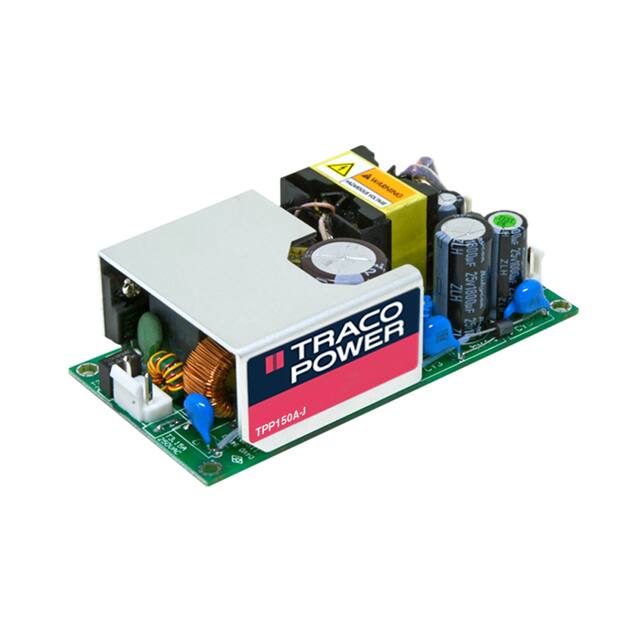

The Traco Power TPP 150-128A-J is a 150 Watt AC/DC open frame power supply designed for medical and ITE (Commercial) applications. It operates with a wide AC input range of 85-264 VAC and offers a stable 28VDC output.
This power supply boasts high efficiency up to 92% and active power factor correction greater than 0.95. It is certified according to IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP, making it suitable for medical devices with low leakage current (<100 µA) for BF applications. It also meets IEC 62368-1 and UL 62368-1 standards.
The unit operates within a temperature range of -25°C to +55°C at full load, with derating up to 80°C at 50% load. Its compact 2.0" x 4.0" package with a height of 1.16" is suitable for space-critical designs. The TPP 150-128A-J is prepared for protection class I and II and operates up to 5000m altitude.
The output voltage is 28 VDC, adjustable between 25.2 VDC and 30.8 VDC.
The maximum output current is 5.36 A.
The power rating is 150W.
The efficiency is typically 92%.
The operating temperature range is -25°C to 80°C with derating.
It is certified according to IEC/EN/ES 60601-1 edition 3.2, IEC 62368-1, and UL 62368-1.
The dimensions are 101.6mm x 50.8mm x 29.5mm.
