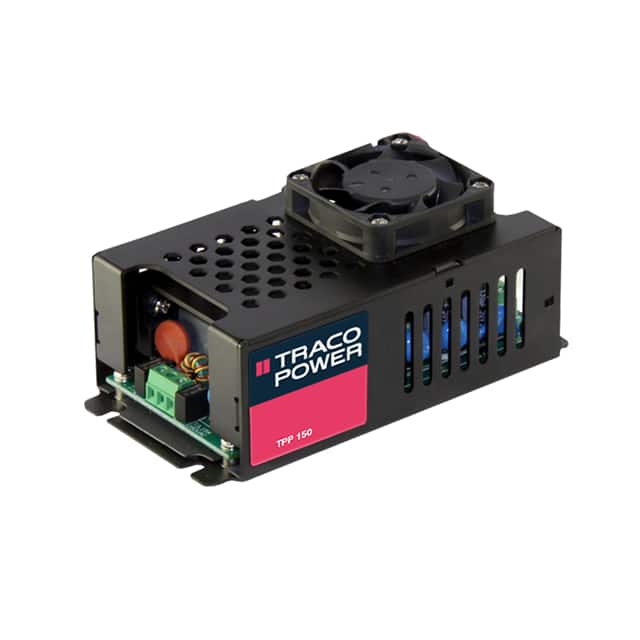

The Traco Power TPP 150-128 is part of the TPP 150 series, offering 150 Watts of power in an enclosed, chassis-mount package. This AC/DC power supply provides a nominal 28VDC output with an adjustable range and a maximum current of 5.36A.
Designed for demanding applications, it meets IEC/EN/ES 60601-1 edition 3.2 standards for medical devices, offering 2 x MOPP and low leakage current (<100 µA) suitable for BF applications. The unit features active power factor correction (>0.95), universal input (85-264 VAC), and high efficiency up to 92%.
The operating temperature range is -25°C to +70°C at full load, extending to +80°C with derating. It supports protection classes I and II and operates up to 5000m altitude. The compact dimensions are 116.8mm x 62.0mm x 49.3mm.
This power supply is ideal for medical devices and other safety-critical applications requiring reliable and efficient power conversion. It comes with a 5-year product warranty.
The Traco Power TPP 150-128 has a nominal output voltage of 28 VDC, adjustable within a range of 25.2 to 30.8 VDC.
The maximum output current for the TPP 150-128 is 5.36 A.
The TPP 150-128 has a power rating of 150W.
The efficiency of the TPP 150-128 is typically 92%.
The operating temperature range is -25°C to +70°C at full load, and up to 80°C with derating.
This power supply is certified according to IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP, and also meets IEC 62368-1 and UL 62368-1.
The dimensions are 116.8mm (Length) x 62.0mm (Width) x 49.3mm (Height), or 4.60" L x 2.44" W x 1.94" H.
