| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

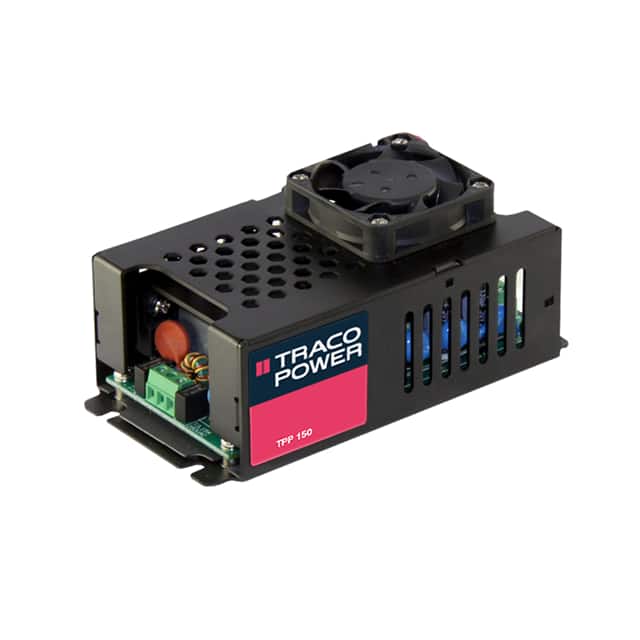

The Traco Power TPP 150-124 is a 150-watt AC/DC converter delivering a nominal 24VDC output at up to 6.25A. It accepts a universal AC input from 85 to 264 VAC (rated 100-240 VAC) with a frequency range of 47-440 Hz. Active power factor correction ensures a minimum power factor of 0.95 at both 115 VAC and 230 VAC.
This converter achieves a typical efficiency of 92% and features low no-load power consumption of 1000 mW maximum. Output voltage is adjustable by ±10% via a trim potentiometer, with a voltage set accuracy of ±1%. Line and load regulation are tight at 0.2% and 0.5% maximum, respectively.
The TPP 150-124 is certified to IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP (Means of Patient Protection), making it suitable for medical BF-rated applications. It includes an internal T 3.15 A / 250 VAC fuse on both line and neutral, and provides 4 kV isolation voltage with leakage current below 100 µA.
Operating temperature range is -25°C to +70°C at full load, with derating to 80°C at 40% load. The unit is rated for operation up to 5000 m altitude.
The nominal output voltage is 24 VDC (adjustable ±10%) with a maximum output current of 6.25 A.
The operating temperature range is -25°C to +70°C at full load, with derating to 80°C at 40% load.
Yes, it is certified according to IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP and is rated for BF applications.
The operational input voltage range is 85-264 VAC (rated range 100-240 VAC) with a frequency range of 47-440 Hz.
Typical efficiency is 92%.
