| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Power Consumption | |
| Type | |
| Voltage | |
| Width |

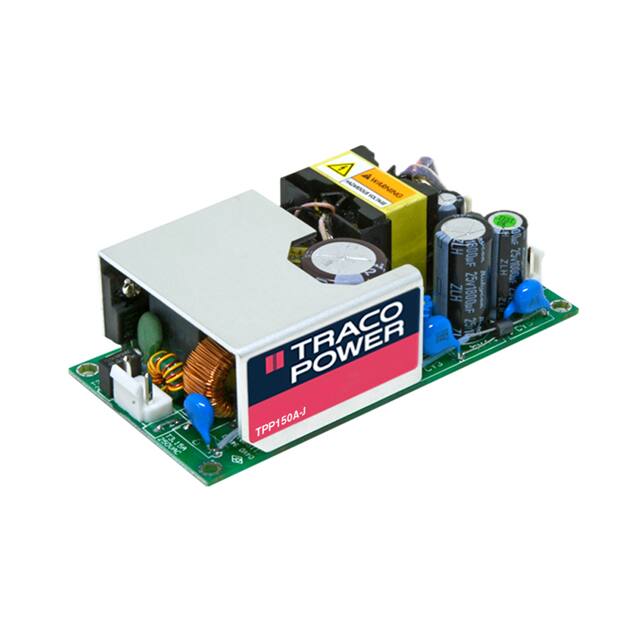

The Traco Power TPP 150A-J series, including the TPP 150-112A-J model, offers 150W of power in an open frame AC/DC converter design. This unit provides a 12VDC output with a maximum current of 12.5A under forced air cooling and 8.34A with natural convection. It boasts a high efficiency of 91% and features active power factor correction.
Designed for demanding applications, this power supply is certified according to IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP, making it suitable for medical devices. It operates with low leakage current (<100 µA), rated for BF applications. The power supply supports a wide input voltage range of 85-264 VAC and operates up to 5000m altitude.
With a compact footprint of 4.00" x 2.00" x 1.16", it is ideal for space-critical designs. The operating temperature range is -25°C to +55°C at full load, with derating up to 80°C at 50% load. It meets ErP directive requirements with less than 0.3W no-load power consumption and includes a 5-year product warranty.
The output voltage is 12 VDC.
The maximum output current is 12.5 A with forced air cooling and 8.34 A with natural convection.
The power rating is 150W.
The typical efficiency is 91%.
The operating temperature range is -25°C to +55°C at full load, and up to 80°C with 50% load derating.
It is certified according to IEC/EN/ES 60601-1 edition 3.2 (2 x MOPP), IEC 60601-1, IEC 62368-1, ES 60601-1, and UL 62368-1.
The leakage current is less than 100 µA, making it suitable for BF applications.
