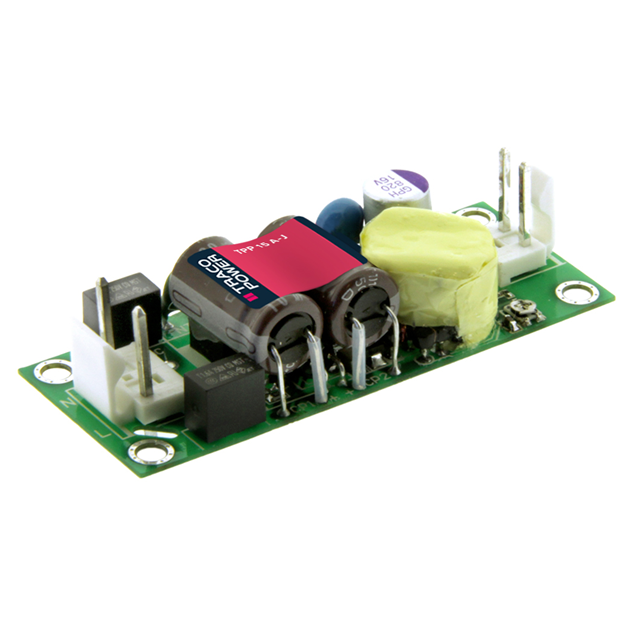

The Traco Power TPP 15-148A-J is a 15 Watt AC/DC power supply in an open frame configuration. It provides a 48V output voltage and operates with a universal input voltage range of 85-264 VAC or 120-370 VDC.
This power supply boasts an efficiency of up to 88% and features adjustable output voltage. It is designed for applications requiring ITE (Commercial) and Medical certifications, with compliance to standards like IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP and IEC 60601-1-2 4th edition for EMC.
The compact dimensions of 66.3mm x 25.4mm x 16.3mm make it suitable for chassis mounting. It operates within a temperature range of -40°C to +85°C with derating and offers low leakage current (<100 µA), making it suitable for BF applications.
The TPP 15-148A-J has a nominal output voltage of 48 VDC.
The maximum output power for the TPP 15-148A-J is 15W.
The efficiency of the TPP 15-148A-J is typically 88% to 89%.
The operating temperature range is -40°C to +85°C with load derating.
The dimensions are 66.3mm in length, 25.4mm in width, and 16.3mm in height.
It is approved by CB, CE, and cURus agencies.
