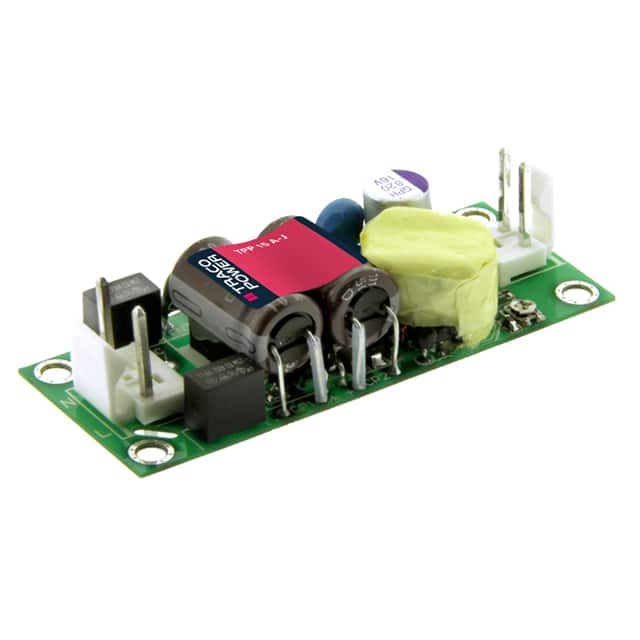

The Traco Power TPP 15A-J series offers high power density AC/DC converters in an open frame, chassis mount package. This specific model, TPP 15-124A-J, delivers 15W of power with a 24V output voltage and an efficiency of up to 88%.
Designed for demanding applications, these converters meet stringent medical safety standards, including IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP, and have low leakage current (<100 µA) suitable for BF applications. EMC compliance is met according to IEC 60601-1-2 4th edition.
The TPP 15-124A-J operates across a wide input voltage range of 85-264 VAC and features adjustable output voltage. Its compact dimensions (66.3mm x 25.4mm x 16.3mm) make it ideal for integration into various systems. The operating temperature range is -40°C to 85°C with derating, ensuring reliable performance in diverse environments.
Key features include universal input, adjustable output, and compliance with medical and ITE standards, making it a versatile solution for power conversion needs.
The output voltage is 24 VDC, adjustable within the range of 21.6 to 26.4 VDC.
The maximum output current is 625 mA.
The efficiency is 88%.
The AC input voltage range is 85-264 VAC, and the DC input voltage range is 120-370 VDC.
The operating temperature range is -40°C to 85°C, with derating at higher temperatures.
It is certified according to IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP, and meets EMC compliance to IEC 60601-1-2 4th edition. It also has CB, CE, and cURus approvals.
Yes, the RoHS status is RoHS3 Compliant.
