| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

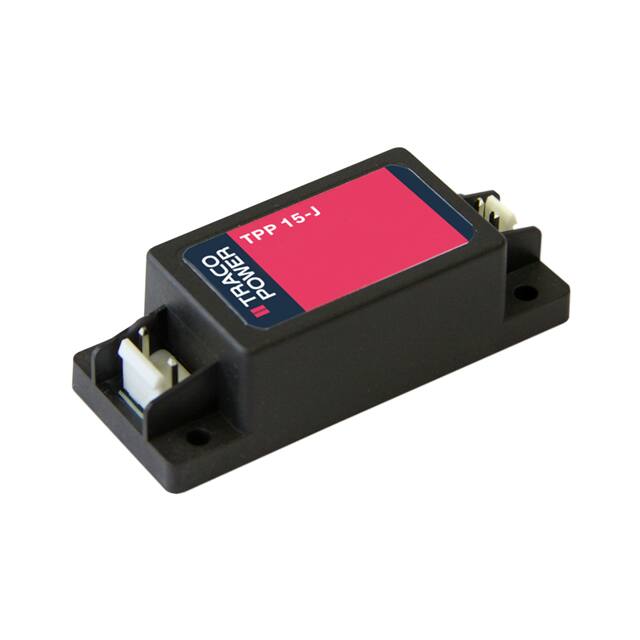

The Traco Power TPP 15-J series, including the TPP 15-115-J model, offers 15 Watt AC/DC medical power supplies with a high power density in an encapsulated design. These power supplies are certified according to IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP, making them suitable for medical applications. They feature low leakage current (<100 µA) rated for BF applications and comply with EMC standards IEC 60601-1-2 4th edition.
The TPP 15-115-J provides a 15VDC output at up to 1A, with a maximum output power of 15W. It operates with a universal input voltage range of 85-264 VAC or 120-370 VDC. The efficiency is rated at 87% typical. The unit is designed for chassis mounting and operates across a wide temperature range of -40°C to +70°C at full load, extending to +85°C with derating.
Key features include reinforced double I/O isolation, compliance with risk management standards (ISO 14971), and acceptance criteria according to IPC-A-610 Level 3. The power supply is designed to meet ErP directive requirements with low no-load power consumption (<100 mW). It also offers protection class II and is rated for operation up to 5000m altitude.
The TPP 15-115-J has a nominal output voltage of 15 VDC.
The maximum output power for the TPP 15-115-J is 15W.
The typical efficiency of the TPP 15-115-J is 87%.
The operating temperature range is -40°C to +70°C at full load, and up to +85°C with derating.
Applications include Household Appliances, ITE (Commercial), and Medical.
The leakage current is less than 100 µA.
