| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standards | |
| Type | |
| Voltage | |
| Width |

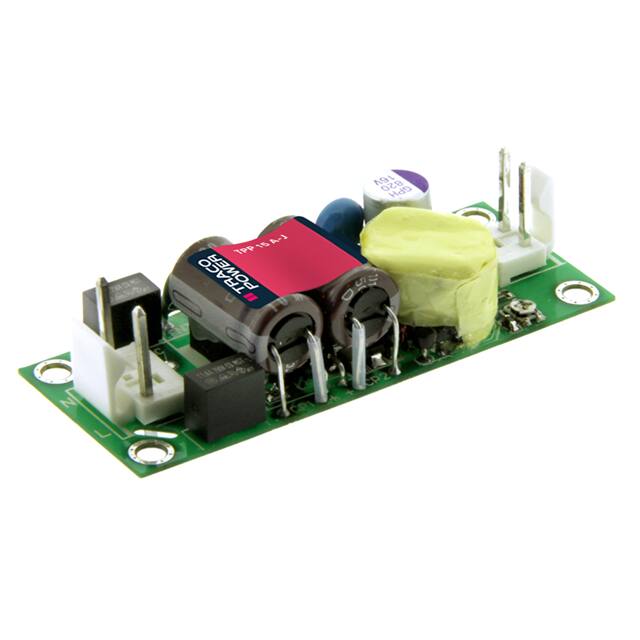

The Traco Power TPP 15A-J series, including the TPP 15-112A-J model, offers 15 Watt AC/DC power conversion in an open frame, chassis mount package. This versatile converter provides a 12VDC output at up to 1.25A, with an adjustable output voltage range and universal AC input.
Designed for demanding applications, it meets medical safety standards (IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP) and EMC compliance (IEC 60601-1-2 4th edition). Key features include low leakage current (<100 µA) suitable for BF applications, high efficiency up to 87%, and operation at altitudes up to 5000m. The operating temperature range is -40°C to +60°C at full load, extending to +85°C with 50% load derating.
This power supply is built with protection class I and II, and includes features like adjustable output and universal input, making it suitable for ITE (Commercial) and Medical applications. It boasts a 5-year product warranty.
The TPP 15-112A-J has an adjustable output voltage of 12 VDC, with a range of 10.8 to 13.2 VDC.
The maximum output current for the 12V output is 1.25 A.
The efficiency of the TPP 15-112A-J is typically 87%.
The operating temperature range is -40°C to +60°C at full load, and up to +85°C with 50% load derating.
Yes, it is certified according to IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP.
The leakage current is less than 100 µA, making it suitable for BF applications.
