| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Isolation | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

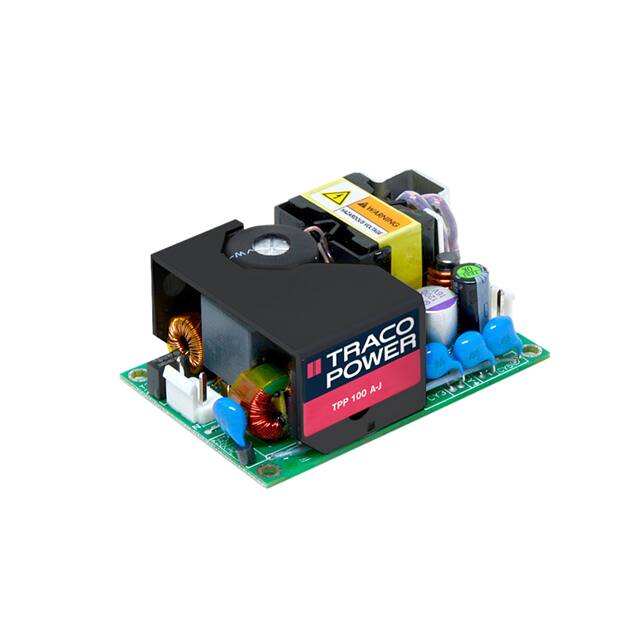

The Traco Power TPP 100-148A-J is part of the TPP 100A-J series, offering 100W of power in an open frame design. This AC/DC converter provides a nominal 48VDC output with an adjustable range and a maximum current of 2.09A. It boasts high efficiency, up to 91%, and features universal AC input (85-264 VAC) and DC input (120-370 VDC) capabilities.
Designed for demanding applications, this power supply meets stringent medical safety standards (IEC/EN/ES 60601-1 edition 3.2) with 2 x MOPP and low leakage current (<75 µA), making it suitable for BF applications. It also supports ITE (Commercial) use. The operating temperature range is -25°C to +55°C at full load, derating to 80°C at 50% load. The unit operates up to 5000m altitude and includes active power factor correction (>0.95).
The power supply has a compact footprint with dimensions of 76.2mm x 50.8mm x 29.5mm (3.00" x 2.00" x 1.16"). It is chassis mountable and features adjustable output and universal input. The product comes with a 5-year warranty, highlighting its reliability for medical devices and safety-critical, space-constrained applications.
The nominal output voltage is 48 VDC, with an adjustable range of 43.2 to 52.8 VDC.
The maximum output current is 2.09 A.
This power supply has a power rating of 100W.
The efficiency is typically 91%.
It accepts a universal AC input range of 85-264 VAC and a DC input range of 120-370 VDC.
The operating temperature range is -25°C to +55°C at full load, and up to 80°C with 50% load derating.
The dimensions are 76.2mm x 50.8mm x 29.5mm (3.00" x 2.00" x 1.16").
