| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

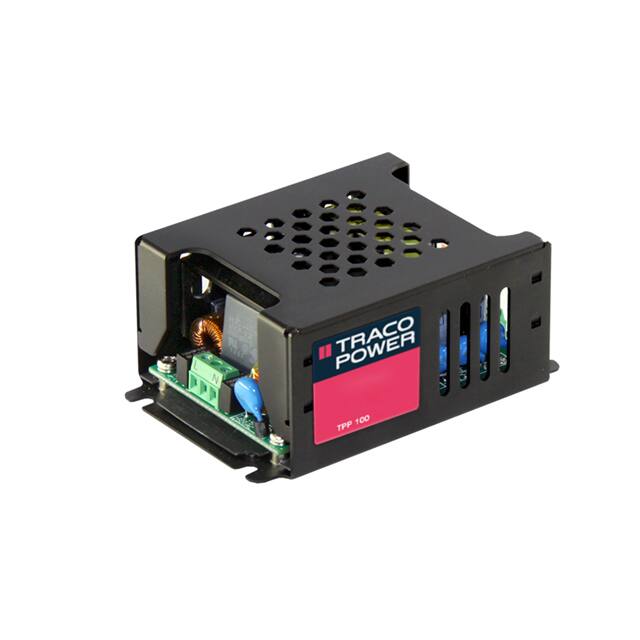

The Traco Power TPP 100-148 is a 100 Watt AC/DC encased power supply designed for demanding applications. It provides a 48VDC output voltage with a maximum current of 2.09A and an efficiency of 91%.
This power supply operates with a wide AC input range of 85-264 VAC and features active power factor correction greater than 0.95. It is built with an enclosed, chassis mount design, measuring 91.4mm x 62.0mm x 39.1mm. The operating temperature range is -25°C to 85°C with derating.
Certified for medical and ITE applications, it meets stringent safety standards with low leakage current (<75 µA) suitable for BF applications. The unit also offers features like adjustable output and universal input, making it a versatile solution for various design requirements.
The output voltage is 48VDC, with an adjustable range of 43.2 to 52.8VDC.
The input voltage range is 85-264VAC full range.
The efficiency is 91%.
The operating temperature range is -25°C to 85°C with derating.
The isolation voltage is 4kV.
The product comes with a 5-year warranty.
The converter is enclosed and chassis mount with dimensions 91.4mm x 62.0mm x 39.1mm.
