| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

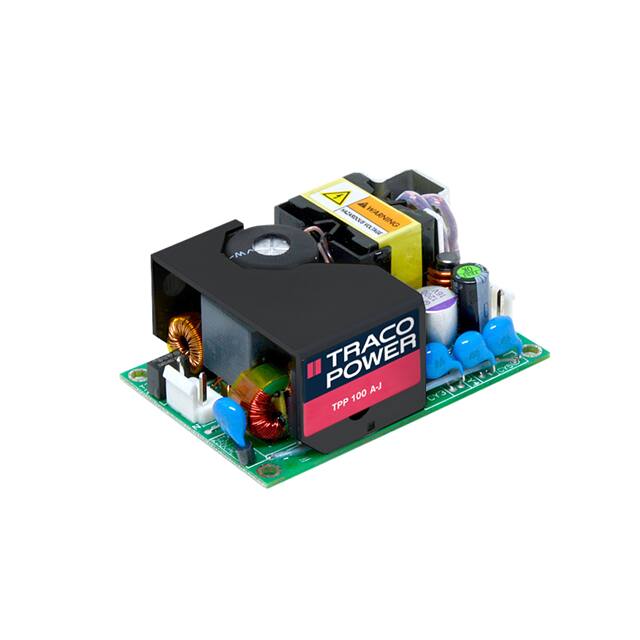

The Traco Power TPP 100A-J series, including the TPP 100-136A-J model, provides 100W of AC/DC power in an open frame design. This unit features a 36VDC output voltage with an adjustable range and delivers up to 2.78A of current. It boasts a high efficiency of 91% and supports a universal input voltage range of 85-264 VAC.
The TPP 100-136A-J is designed for demanding applications, meeting IEC/EN/ES 60601-1 edition 3.2 standards for medical devices with 2 x MOPP and low leakage current (<75 µA) suitable for BF applications. It operates across a wide temperature range from -25°C to +55°C at full load, with derating up to 80°C at 50% load. The power supply also includes active power factor correction (>0.95) and is prepared for protection class I and II.
Packaged in a compact 2.0" x 3.0" (50.8mm x 76.2mm) footprint with a height of 29.5mm, this open frame converter is suitable for chassis mounting. It is ideal for ITE (Commercial) and Medical applications requiring reliable and safe power conversion.
The nominal output voltage is 36 VDC, adjustable ±10% via trim potentiometer.
Open frame chassis mount. Dimensions: 76.2mm x 50.8mm x 29.5mm.
Full load: -25°C to +55°C; derating to +80°C at 50% load.
85-264 VAC (47-440 Hz) or 120-370 VDC.
2.78 A.
Yes, active PFC with minimum power factor of 0.95 at both 115V and 230VAC.
4 kV reinforced double input/output isolation.
