| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

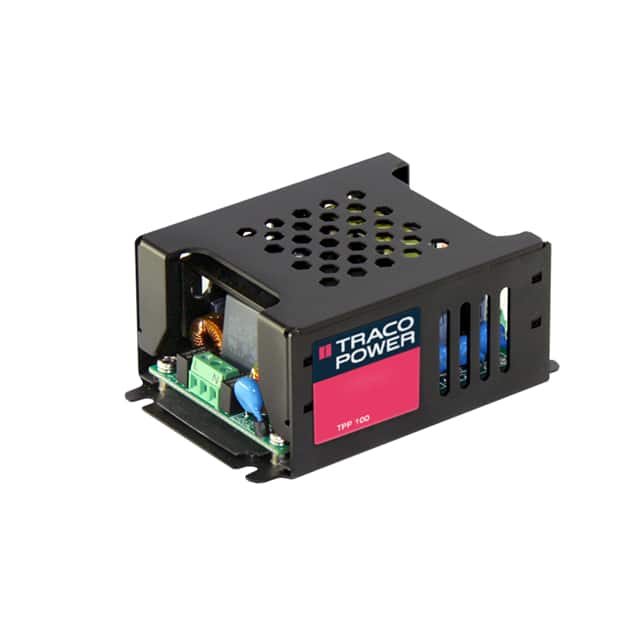

The Traco Power TPP 100-128 is part of the TPP 100 Series, offering a 100 Watt AC/DC encased power supply solution. This model provides a 28VDC output voltage with a maximum current of 3.58A and boasts an efficiency of up to 92%.
Designed for versatility, it operates with a wide AC input range of 85-264 VAC and features active power factor correction greater than 0.95. The unit is certified according to IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP and has a low leakage current of less than 75 µA, making it suitable for BF applications.
With a compact, enclosed design, it is suitable for chassis mounting. The operating temperature range is -25°C to +85°C with derating, and it can operate up to 5000m altitude. This power supply is ideal for medical devices and demanding safety-critical applications requiring reliable power conversion.
The Traco Power TPP 100-128 has an output voltage of 28VDC.
The TPP 100-128 power supply has a maximum output current of 3.58 A.
The efficiency of the Traco Power TPP 100-128 is 92%.
The operating temperature range for the TPP 100-128 is -25°C to +85°C with derating.
The dimensions of the TPP 100-128 are 91.4mm (Length) x 62.0mm (Width) x 39.1mm (Height).
The TPP 100-128 is certified by CB, CE, and cURus.
The leakage current is less than 75 µA, making it rated for BF applications.
