| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

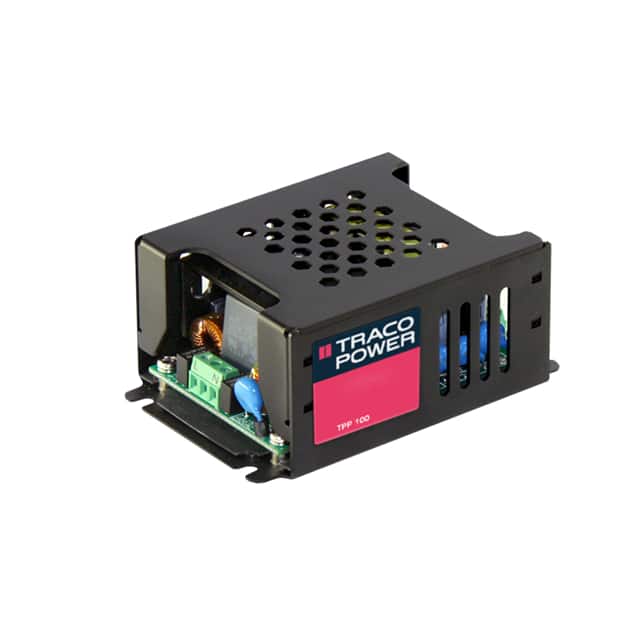

The Traco Power TPP 100-124 is part of the TPP 100 Series, providing 100 Watts of power in an enclosed, chassis-mount package. This AC/DC converter delivers a 24VDC output at 4.17A, with an efficiency rating of 92% and active power factor correction.
Designed for versatility, it accepts a wide input voltage range of 85-264 VAC and operates across various frequencies. Key features include adjustable output, IP20 rating, and suitability for ITE (Commercial) and Medical applications. The unit is built to meet stringent safety standards, including IEC/EN/ES 60601-1 edition 3.2 for 2 x MOPP and low leakage current (<75 µA) for BF applications.
With a compact footprint measuring 91.4mm x 62.0mm x 39.1mm, it is suitable for space-critical designs. The operating temperature range is -25°C to +60°C at full load, extendable to +80°C with 50% load derating. It also supports operation up to 5000m altitude.
The output voltage is 24 VDC with a range of 21.6 to 26.4 VDC.
Full load operation from -25°C to +60°C, with derating to 80°C at 50% load.
Enclosed chassis mount package.
92% typical efficiency.
85-264 VAC full range (47-440 Hz).
4 kV isolation voltage.
Up to 5000 meters altitude.
