| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

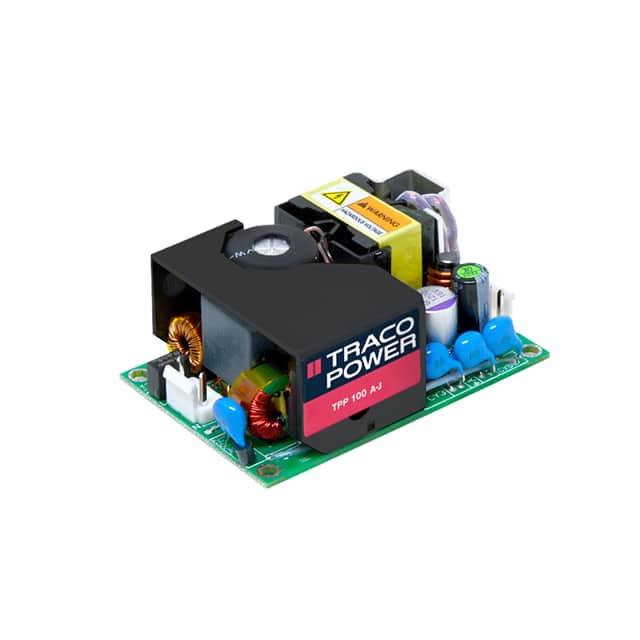

The Traco Power TPP 100A-J series, including the TPP 100-112A-J model, offers 100W of AC/DC power in an open frame design with a 12V output. This power supply operates with a universal input voltage range of 85-264 VAC and features active power factor correction greater than 0.95. It boasts high efficiency up to 91% and a compact 2.0" x 3.0" package.
Designed for demanding applications, this power supply meets IEC/EN/ES 60601-1 edition 3.2 standards for medical use, providing 2 x MOPP and low leakage current (<75 µA) suitable for BF applications. It also adheres to IEC 62368-1 and UL 62368-1 standards. The operating temperature range is -25°C to +55°C at full load, with derating up to 80°C at 50% load. It is prepared for protection class I and II and can operate up to 5000m altitude.
Key features include a reinforced double I/O isolation system, risk management according to ISO 14971, and acceptance criteria per IPC-A-610 Level 3. The unit is ready to meet ErP directive with less than 0.3W no-load power consumption. It comes with a 5-year product warranty.
The output voltage is 12 VDC (adjustable 10.8-13.2 VDC) and the maximum output current is 8.34 A.
The operational input voltage range is 85-264 VAC (rated 100-240 VAC) or 120-370 VDC.
Typical efficiency is 91%.
Full load operation from -25°C to +55°C, with derating to 50% load up to 80°C.
Open frame chassis mount, dimensions 76.2mm x 50.8mm x 29.5mm (3.00" x 2.00" x 1.16").
Reinforced double I/O isolation rated at 4 kV.
