Mfr Part #:

TPL5010DDCR

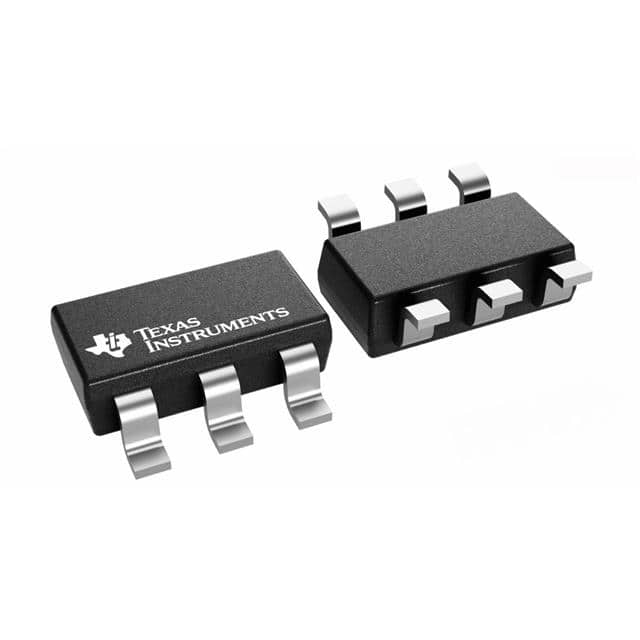

The Texas Instruments TPL5010DDCR is a nano-power system timer with watchdog functionality and manual reset. It operates from 1.8V to 5.5V with a typical current consumption of 35 nA.

✓ Total Stock: 88,951 pcs

$ Price Range: $0.33

TPL5010DDCR Available from 6 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	55,000 pcs On Request	55000 pcs	On Request	1	On Request	On Request	21+	On Request	On Request
Mufeng Electronics ✓ Non-Authorised Inventory information	30,000 pcs On Request	30000 pcs	On Request	1	On Request	On Request	25+	On Request	On Request
Fe Components ✓ Non-Authorised Inventory information	3,000 pcs On Request	3000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Bristol Electronics ✓ Non-Authorised Inventory information	555 pcs On Request	555 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Akira Global ✓ Non-Authorised Inventory information	385 pcs On Request	385 pcs	On Request	1	On Request	On Request	2512+5	On Request	On Request
PROSOFT ELECTRONICS ✓ Non-Authorised Inventory information	11 pcs On Request	11 pcs	On Request	1	On Request	On Request	25+	On Request	On Request

TPL5010DDCR Description

Short technical summary and product information.

The TPL5010DDCR from Texas Instruments is a nano-power system timer designed for wake-up functions in duty-cycled, battery-powered applications like IoT devices. It consumes a minimal 35 nA of current, allowing microcontrollers to remain in low-power modes for extended periods.

This timer offers selectable time intervals ranging from 100 ms to 7200 s with a typical accuracy of 1%. It includes essential features such as a watchdog function for safety compliance (e.g., EN50271) and a manual reset capability. The device operates over a supply voltage range of 1.8 V to 5.5 V.

The TPL5010DDCR is housed in a compact SOT-23-6 Thin package, suitable for surface mount applications. Its ultra-low power consumption makes it ideal for extending battery life in energy harvesting and wireless sensor applications, enabling the use of smaller batteries.

TPL5010DDCR Quick Information

Product Type: Programmable Timer

Canonical Name: TPL5010 Nano-Power System Timer

Subcategory: Programmable Timer

TPL5010DDCR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TPL5010DDCR Estimated Pricing

Qty	Low	High
1+	$0.33	$0.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPL5010DDCR Features

Nano-power system timer with watchdog.
Ultra-low current consumption of 35 nA.
Selectable time intervals from 100 ms to 7200 s.
Wide supply voltage range of 1.8 V to 5.5 V.
Compact SOT-23-6 Thin package for surface mounting.

TPL5010DDCR Applications

Ideal for battery-powered IoT devices.
Enables extended microcontroller sleep modes.
Suitable for energy harvesting applications.
Used in wireless sensor networks.
Supports duty-cycled system wake-up.

TPL5010DDCR FAQs

5 frequently asked questions generated from this part’s specifications.

What is the operating voltage range for the TPL5010DDCR?

The TPL5010DDCR operates from 1.8 V to 5.5 V.

What is the typical current consumption of the TPL5010DDCR?

The typical current consumption is 35 nA at 2.5 V.

What is the operating temperature range for this timer?

The operating temperature range is -40°C to 105°C.

What are the selectable time intervals for the TPL5010DDCR?

Selectable time intervals range from 100 ms to 7200 s.

What package type is the TPL5010DDCR available in?

The TPL5010DDCR is available in a SOT-23-6 Thin package.

Category	Programmable Timers and Oscillators
Manufacturer Name	Texas Instruments
Current	35 nA (Typical)
Mounting Type	Surface Mount
Operating Temperature	-40°C to 105°C
Supplier Device Package	SOT-23-THIN
Supplier Package	SOT-23-THIN
Type	Programmable Timer
Voltage	1.8 V to 5.5 V
