| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36,858 pcs
|
36858 pcs | On Request | 1 | On Request | On Request | 2017 | On Request | On Request | |
|
7,500 pcs
|
7500 pcs | On Request | 1 | On Request | On Request | 2021+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Ratings | |
| Shielding | |
| Tolerance | |
| Width |

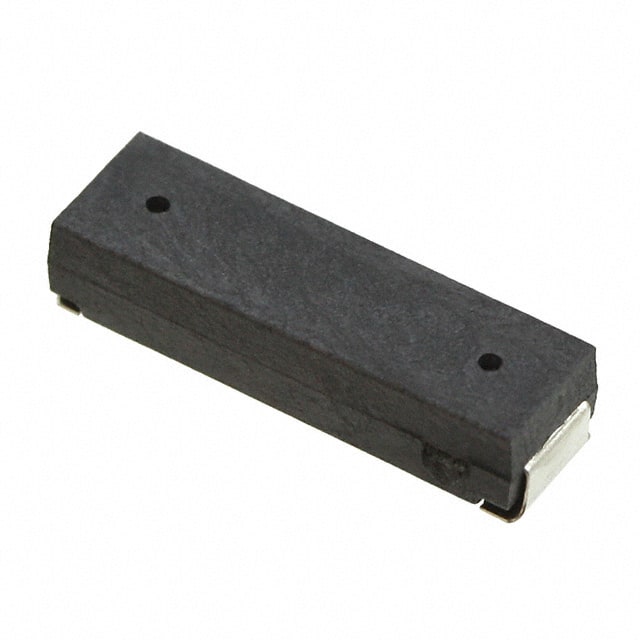

This TDK Corporation fixed inductor, part number TPL1183525-242Y-236N, offers a nominal inductance of 2.36 mH and a DC resistance of 24 Ohms. It is designed for surface mounting and operates within a temperature range of -40°C to 125°C.
The inductor has a Q factor of 53 at 125kHz and a tolerance of ±3%. Its dimensions are 11.80mm in length, 3.50mm in width, and 2.70mm in height. The component is unshielded and rated AEC-Q200, making it suitable for demanding applications.
Key electrical specifications include its inductance value and DCR. The mechanical specifications define its physical footprint and mounting method. The operating temperature range is crucial for thermal management in various environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 2.36mH.
The DC Resistance (DCR) is 24 Ohms.
The Q factor is 53 at 125kHz.
The operating temperature range is -40°C to 125°C.
The inductor measures 11.80mm in length, 3.50mm in width, and 2.70mm in height.
No, this inductor is unshielded.
This inductor is rated AEC-Q200.
