| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | 2020+ | On Request | On Request | |
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | 19+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| DC Resistance (DCR) | |
| Frequency | |
| Frequency - Self Resonant | |
| Height | |
| Inductance | |
| Length | |
| Manufacturer Standard Package | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Ratings | |
| Shielding | |
| Tolerance | |
| Width |

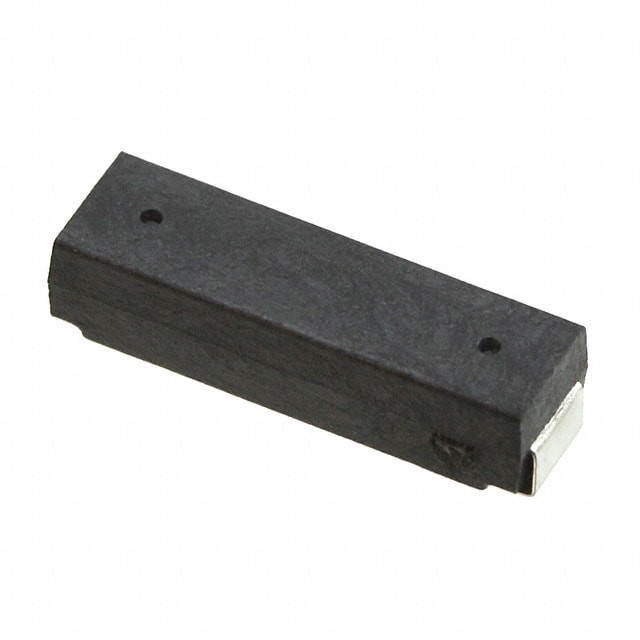

The TDK TPL1183427-722J-720N is a fixed inductor designed for various electronic applications. It offers an inductance value of 7.2 mH with a tight tolerance of ±5% and a DC resistance (DCR) of 50 Ohms.
This inductor operates within a temperature range of -40°C to 125°C and is rated AEC-Q200, indicating suitability for demanding environments. Its dimensions are 11.80mm in length, 3.40mm in width, and 3.05mm in height, making it a compact component for surface mounting.
The unshielded design and specific electrical characteristics, such as a Q factor of 66 at 125kHz and a self-resonant frequency of 690kHz, make it suitable for filtering and energy storage applications where precise performance is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 7.2 mH.
The DC Resistance (DCR) is 50 Ohm.
The self-resonant frequency is 690kHz.
The operating temperature range is -40°C to 125°C.
It is a Nonstandard package type, designed for surface mounting.
