| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,480 pcs
|
10480 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8,326 pcs
|
8326 pcs | On Request | 1 | On Request | On Request | 20 | On Request | On Request | |
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,390 pcs
|
3390 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
1,543 pcs
|
1543 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | 00+ | On Request | On Request | |
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Function | |
| Logic Type | |
| Mounting Type | |
| Number of Bits per Element | |
| Number of Channels | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |

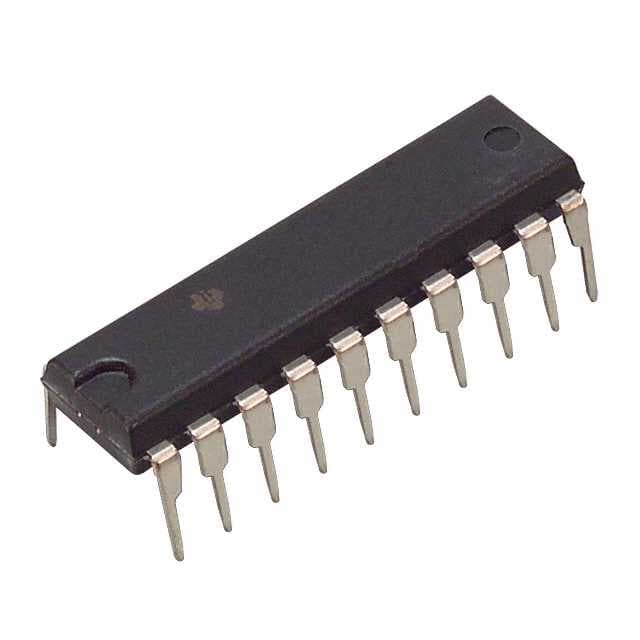

The TPIC6B595N from Texas Instruments is a monolithic, high-voltage, medium-current power 8-bit shift register. It is designed for systems requiring significant load power, such as driving relays, solenoids, and other medium to high-voltage loads. The device integrates an 8-bit serial-in, parallel-out shift register feeding an 8-bit D-type storage register.
Key electrical characteristics include an operating voltage range of 4.5V to 5.5V and an operating temperature range from -40°C to 125°C. Each of the eight power DMOS transistor outputs can handle 150mA of continuous current and feature an output clamp voltage of 50V for inductive transient protection. The device also boasts low rDS(on) of 5 Ohms typical and an avalanche energy rating of 30mJ.
This shift register is available in a 20-PDIP through-hole package, with dimensions of 20-DIP (0.300", 7.62mm). Its open-drain output topology and cascadable design make it suitable for various power driver applications. The device also offers low-power consumption.
Data transfers occur on the rising edge of the shift-register clock (SRCK) and the register clock (RCK). The storage register transfers data to the output buffer when the shift-register clear (SRCLR) is high. Write and read data are valid only when RCK is active.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.12 | $1.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TPIC6B595N operates from 4.5V to 5.5V.
The TPIC6B595N is offered in a 20-pin PDIP package with through-hole mounting.
The operating temperature range is -40°C to 125°C.
The device has 8 output channels.
The outputs are open-drain type.
The output clamp voltage is rated at 50V.
Each channel supports 150mA continuous current.
