| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60,267 pcs
|
60267 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
3,599 pcs
|
3599 pcs | On Request | 1 | On Request | On Request | 2110+ | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,470 pcs
|
1470 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
33 pcs
|
33 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Features | |
| Function | |
| Input Voltage | |
| Logic Type | |
| Mounting Type | |
| Number of Bits per Element | |
| Number of Channels | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| Output Voltage | |
| Supplier Device Package | |
| Supplier Package | |
| Topology | |
| Voltage |

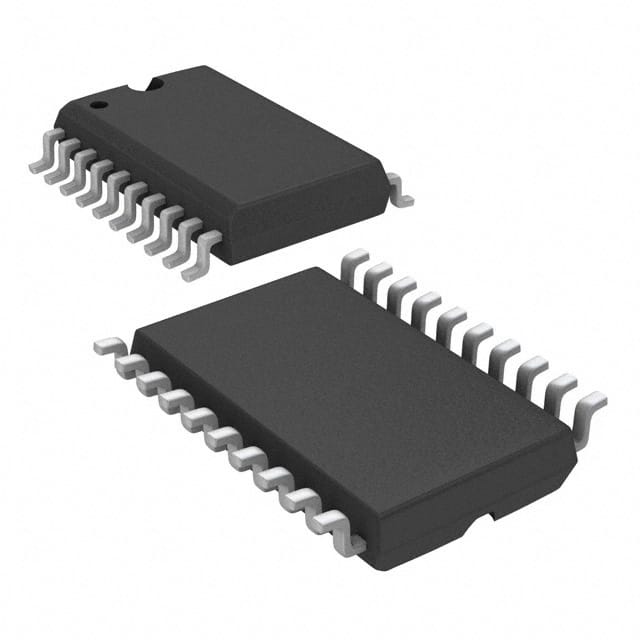

The Texas Instruments TPIC6B595DWRG4 is a monolithic, high-voltage, medium-current power 8-bit shift register. It is designed for systems requiring relatively high load power, such as driving relays, solenoids, and other medium current or high-voltage loads. The device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register.
Key electrical specifications include an input voltage range of 4.5V to 5.5V and an output voltage rating of up to 50V. It offers 8 open drain output channels, each capable of handling 150mA continuous current. The device also features a low on-resistance (RDS(on)) of 5 Ohm typical and includes built-in voltage clamp on the outputs for inductive transient protection. Thermal shutdown is also integrated for device protection.
Packaged in a 20-SOIC (0.295", 7.50mm Width) surface mount package, the TPIC6B595DWRG4 operates within an ambient temperature range of -40°C to 125°C. Its automotive rating makes it suitable for demanding environments. The shift register is cascadable, allowing for expansion of the serial data input to control more outputs.
This component is ideal for applications requiring controlled switching of multiple high-voltage or medium-current loads from a serial data stream. Its design facilitates efficient power management and protection against inductive transients.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.77 | $0.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.5V to 5.5V.
The device is available in a 20-SOIC package.
-40°C to 125°C.
150mA per channel.
50V.
Shift register with serial to parallel conversion.
Yes, it is rated for automotive applications.
