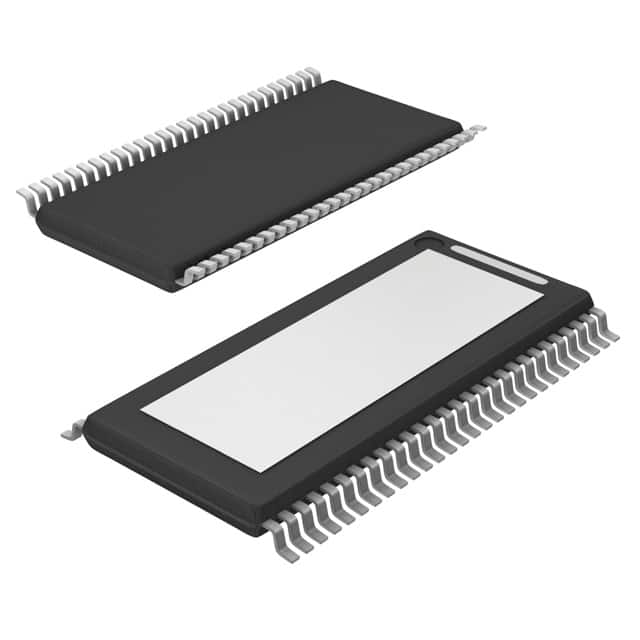

The Texas Instruments TPIC2050RDFDRG4 is a highly integrated motor driver IC designed for applications like media players. It features 9 motor driver channels and 3 laser diode drivers, controlled via an SPI serial interface.
Key electrical specifications include operating supply voltages of 5V and 12V, with a driver supply voltage of 12V. The device supports various motor types, including Brushless DC (BLDC) and Brushed DC motors. It offers a maximum continuous current of 1.5A and a laser diode driver current output of 120mA. The operating temperature range is -20°C to 75°C.
This IC is housed in a 56-HTSSOP package, specifically a 56-PowerTSSOP with a width of 6.10mm. Mounting is via surface mount technology. The technology utilized is Power MOSFET, and it provides an output configuration of Half Bridge (19).
Utility functions include status latch, on-chip thermometer, short-circuit protection, and power monitoring via undervoltage lockout (UVLO) and overvoltage protection (OVP). The SPI interface supports a maximum clock speed of 35 MHz with 3.3-V digital I/O.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.80 | $1.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -20°C to 75°C (TA).
The TPIC2050RDFDRG4 is available in a 56-HTSSOP package, specifically a 56-PowerTSSOP (0.240", 6.10mm Width).
The device supports operating supply voltages of 5V and 12V.
It can drive Brushless DC (BLDC) and Brushed DC motors.
The maximum continuous current is 1.5-A.
Yes, it includes a 3-beam laser diode driver with a 120-mA current output.
It uses an SPI (Serial Peripheral Interface) digital interface.
