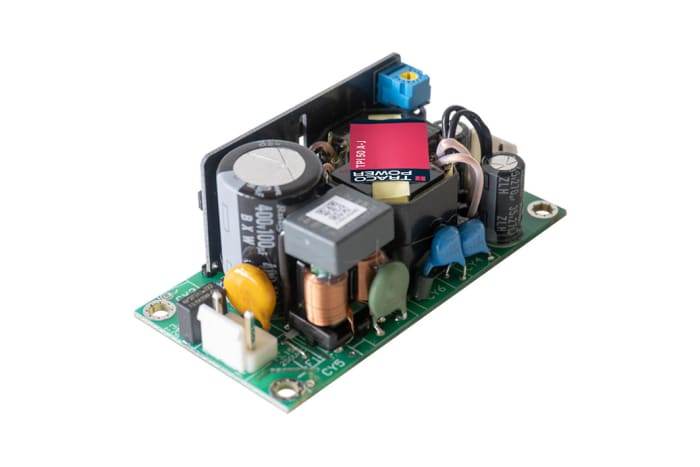

The Traco Power TPI 50-153A-J is a 50 Watt AC/DC open frame power supply designed for industrial and automation applications. It features a compact and cost-efficient design with a 3000 VAC reinforced isolation system.
This power supply offers an output voltage of 53V dc and a maximum output current of 950mA, delivering up to 50W of power. It operates with an input voltage range from 85V ac to 264V ac and boasts an efficiency of up to 93%. The operating temperature range is -40°C to +85°C, allowing for reliable performance in demanding environments.
Designed to meet the ErP directive, the TPI 50-153A-J has a low no-load input power of less than 0.3W. It includes an internal EN 55032 class B filter and is prepared for Protection Class II.
The unit has dimensions of 76.2mm x 38.1mm x 33.0mm and is suitable for chassis mounting. Its high reliability is attributed to the use of industrial high-quality grade components and excellent thermal management, making it an ideal solution for space-critical applications.
The Traco Power TPI 50-153A-J has a maximum output voltage of 53V dc and an output current of 950mA.
The TPI 50-153A-J power supply accepts a minimum input voltage of 85V ac and a maximum input voltage of 264V ac.
The Traco Power TPI 50-153A-J has a power rating of 50W.
The operating temperature range for the TPI 50-153A-J is -40°C to 85°C.
The efficiency of the Traco Power TPI 50-153A-J is up to 93%.
The TPI 50-153A-J supports chassis mounting.
Yes, the TPI 50-153A-J is RoHS3 Compliant.
