| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Weight | |
| Width |

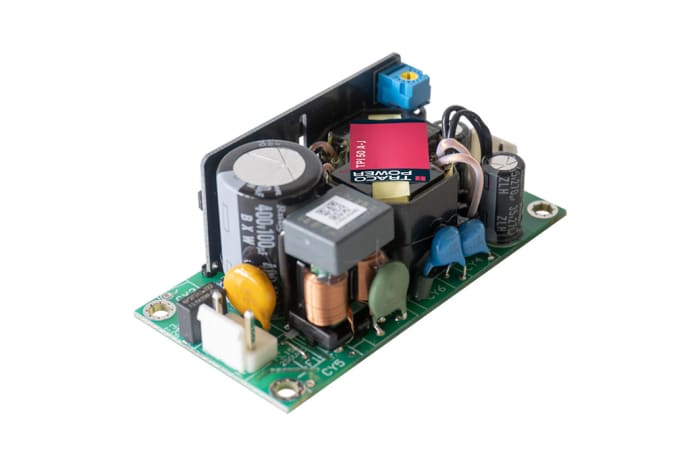

The Traco Power TPI 50-115A-J is a 50 Watt AC/DC open frame power supply designed for industrial applications. It features a 3000 VAC reinforced isolation system and a compact, cost-efficient design.
With an excellent efficiency of up to 93%, this power supply operates within a wide temperature range of -40°C to +85°C, with no derating required up to 60°C under natural convection. It meets the ErP directive with low no-load input power (<0.3W) and includes an internal EN 55032 class B filter.
Ideal for demanding industrial devices or space-critical applications, the TPI 50-115A-J provides high reliability through the use of industrial-grade components and effective thermal management. It is prepared for Protection Class II and is suitable for ITE (Commercial) applications.
The power supply has a 15V dc output current of 3.34mA and accepts an input voltage range of 85V ac to 264V ac. Its dimensions are 76.2mm x 38.1mm x 33.0mm, and it is designed for chassis mounting.
-40°C to 85°C.
85VAC to 264VAC.
15V DC (maximum).
93%.
3 kV.
Chassis Mount.
Adjustable Output, DC Input Capable, Universal Input.
